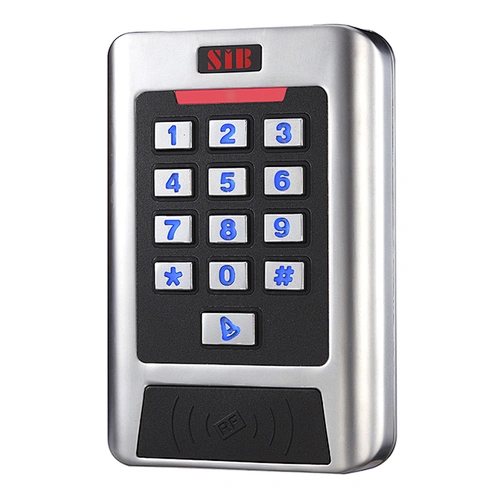

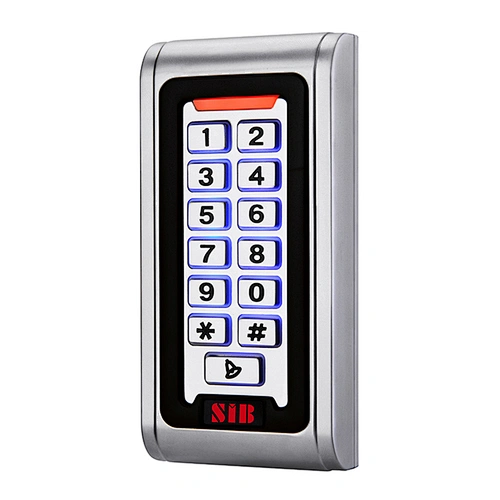

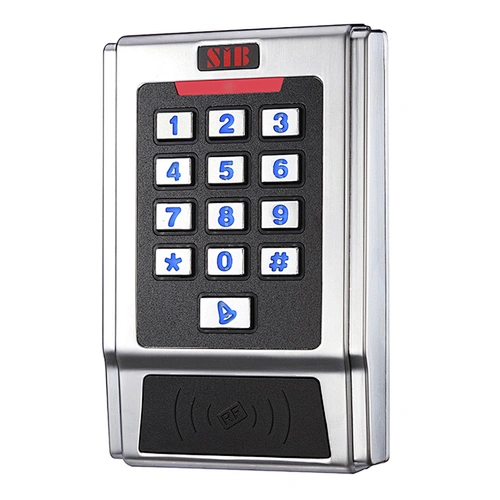

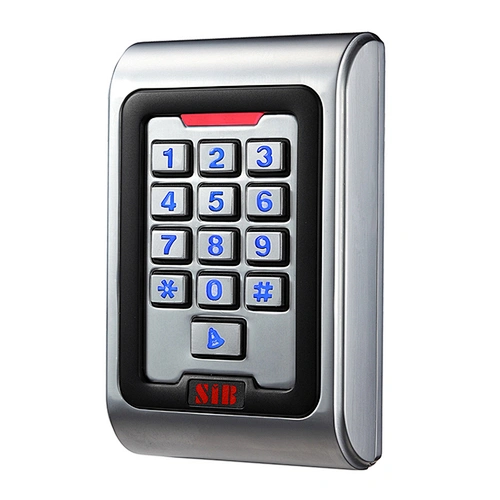

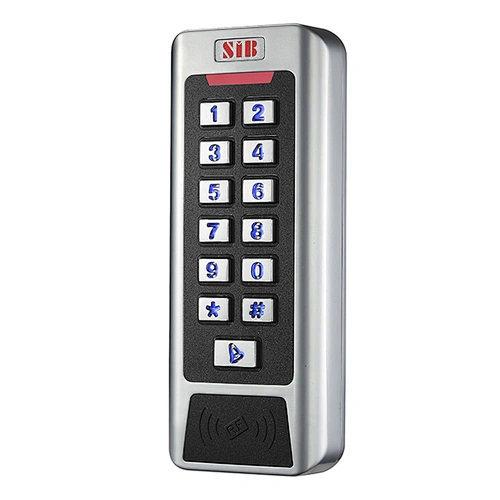

1. Features
- Waterproof, conforms to IP65/IP68
- Strong Zinc Alloy Electroplated anti-vandal case
- Full programming from the keypad
- 2000 users, supports Card, PIN, Card + PIN
- Can be used as a stand alone keypad
- Backlight keys
- Wiegand 26 input for connection to external reader
- Wiegand 26 output for connection to a controller
- Adjustable Door Output time, Alarm time, Door Open time
- Very low power consumption (30mA)
- Fast operating speed, <20ms with 2000 users
- Lock output current short circuit protection
- Easy to install and programme
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
2. Specification
- Input Voltage AC/DC 12V
- Idle Current<25mA
- Lock output load<1A
- Alarm output load<1A
- Ring bell load<1A
- Card reading distance 40mm Max
- Card Frequency: 125KHz for EM and HID,13.56MHz for Mifare
- Card transmission format 26-37 bit wiegand
- Keypad transmission format:4bit,8bit and Virtual card number
- Operating Temperature:-45°C～55° C
- Operating Humidity:0%～95%

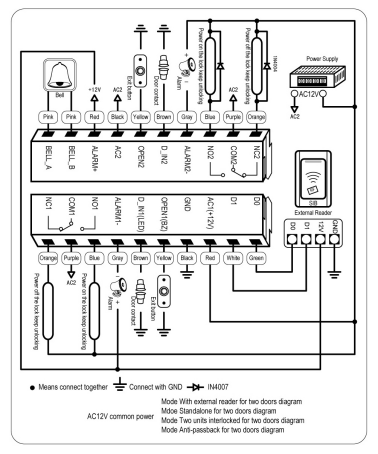

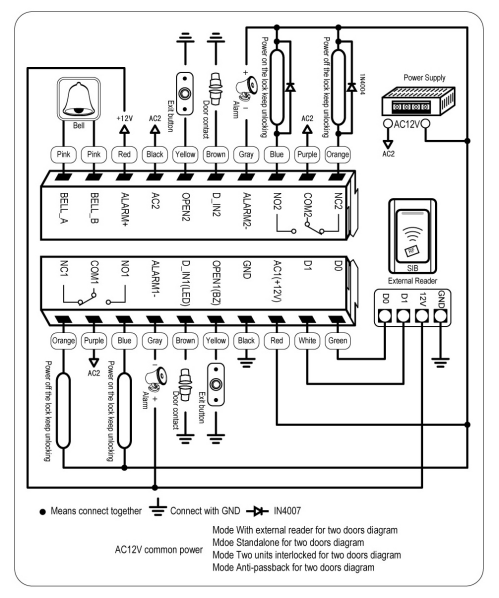

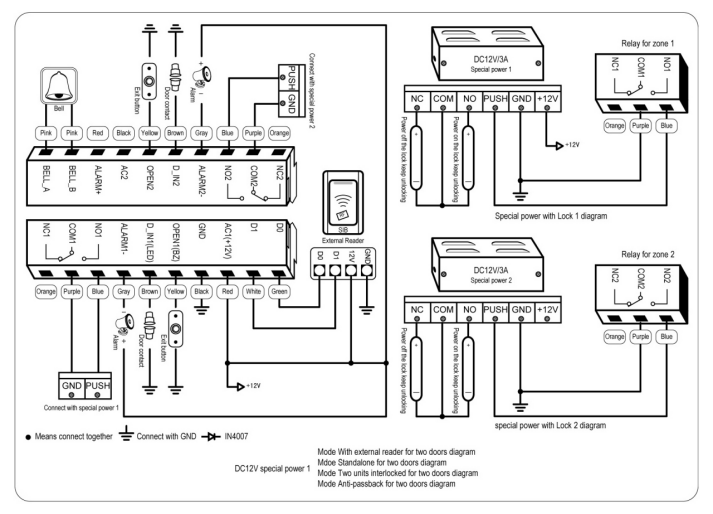

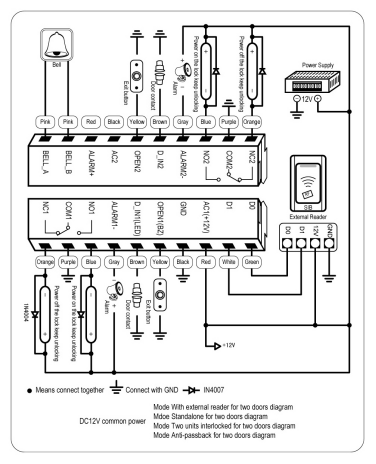

3. Wiring
ZONE1 | ZONE2 | |||||
No. | Marks | Color | Description | Marks | Color | Description |
1 | BELL_A | Pink | Doorbell button | D0 | Green | Wiegand output D0 |
2 | BELL_B | Pink | Doorbell button | D1 | White | Wiegand output D1 |
3 | ALARM+ | Red | Alarmanode | AC1 | Red | AC1 (+12V) |
4 | AC2 | Black | AC input | GND | Black | GND |
5 | OPEN2 | Yellow | Exit button | OPEN1(LED) | Yellow | Exit button (for green LED) |
6 | D_IN2 | Brown | Door contact | D_IN1(BZ) | Brown | Door contact(for buzzer) |
7 | ALARM2- | Gray | Alarm 2 | ALARM1- | Gray | Alarm 1 |
8 | NO2 | Blue | Relay 2 NO end | NO1 | Blue | Relay 1 NO end |
9 | COM2 | Purple | Relay2Com | COM1 | Purple | Relay1 Com |
10 | NC2 | Orange | Relay2 NC end | NC1 | Orange | Relay1 NC end |
4. Diagram
5. Packaging
0.29kg/pc
54pcs/ctn, 17kgs/ctn
Outside carton dimension: 56*40*41cm
