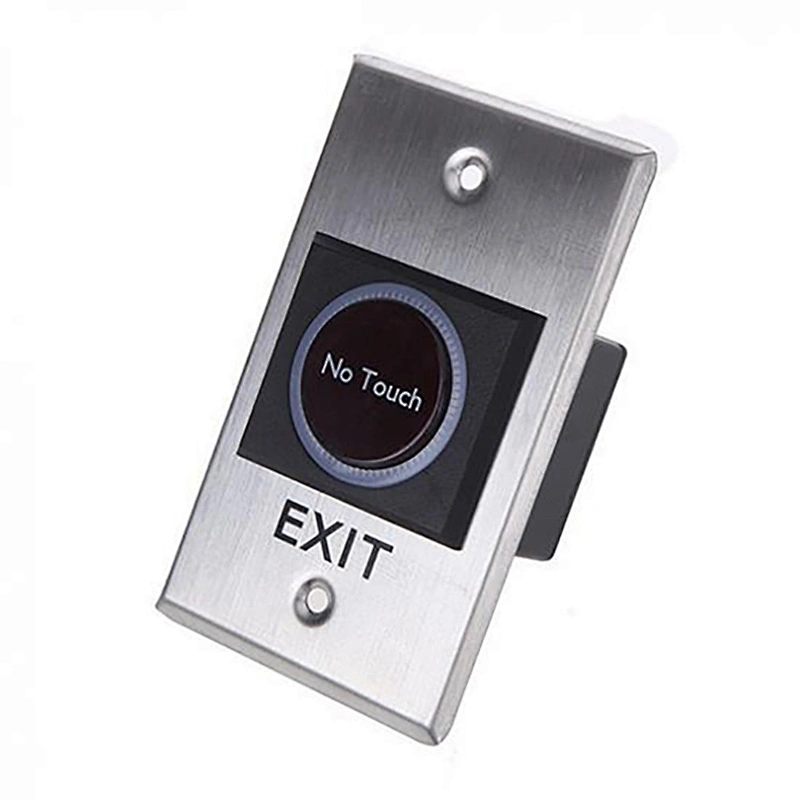

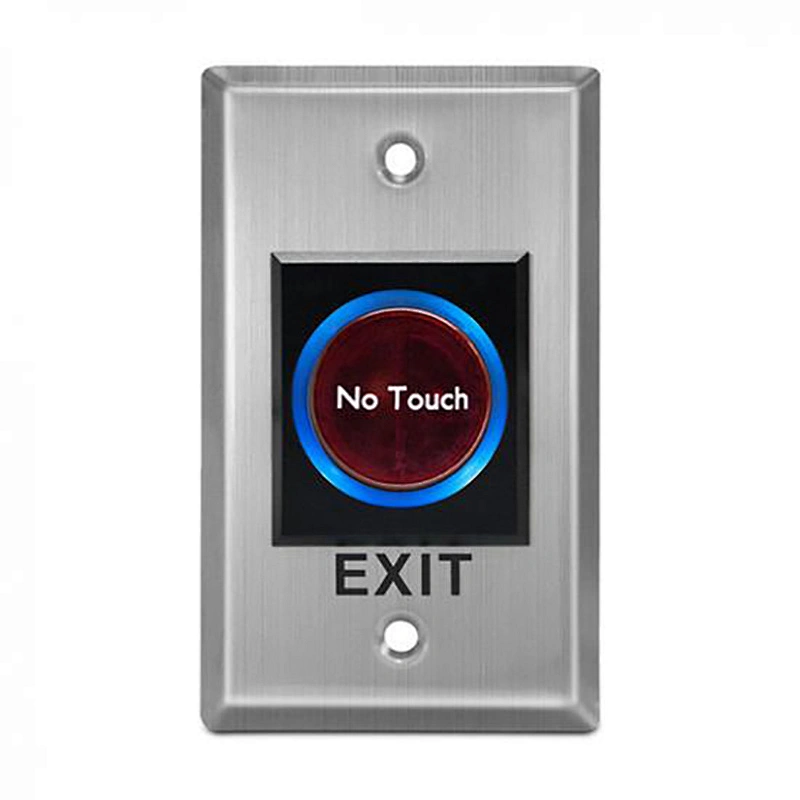

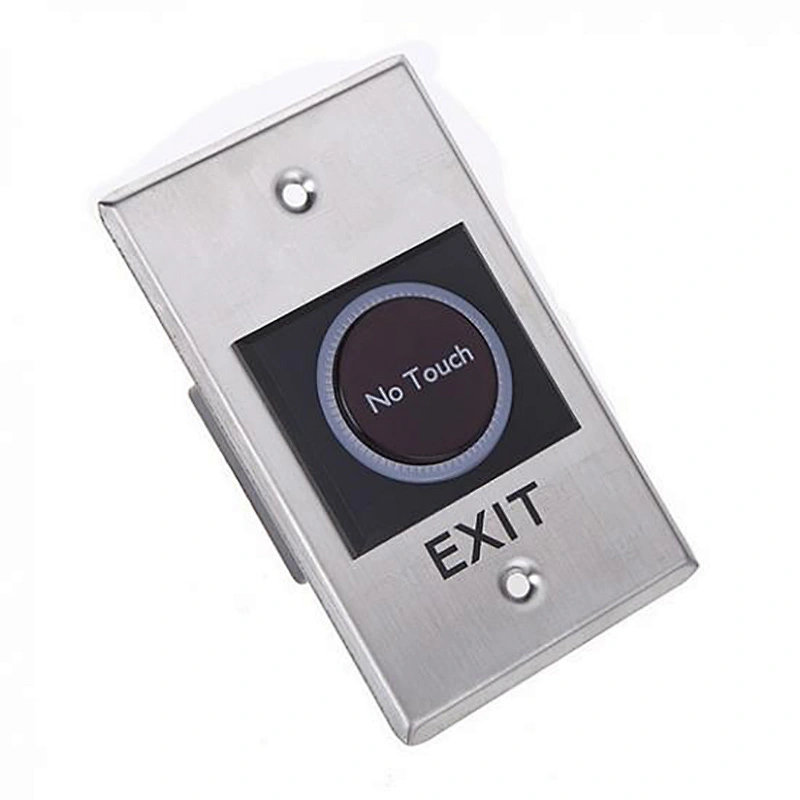

Infrared Sensor Switch No Touch Contactless Switches Door Release Exit Button with LED Indication
Dimensions | 115 X 70 X 25mm |
Standard Structure | Stainless steel Panel, Steel Button |
Current Rating | 3A,36VDC Max |
Output Contact | +12V GND NO NC COM |
Mechanical Life | 1000000 tested |
Suitable for Door | Hollow Door |
Operating temp | -10℃ ~ 55°C (14°F-131°F) |
Operating Humidity | 0-95% (non- condensing) |
Detection range | 0.1-10cm |
LED Indicator
White LED indicator | Power OFF |
Blue LED indicator | Power ON(standby) |
Red LED indicator | Power ON(sensation) |
Weight | 0.2kg |
Standard Packing | 100pcs |
