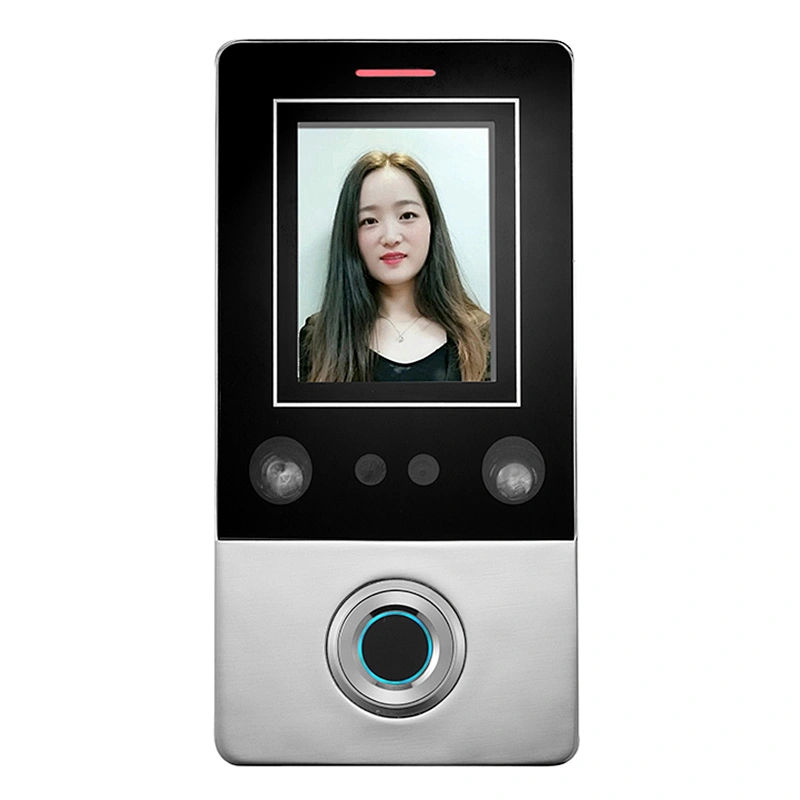

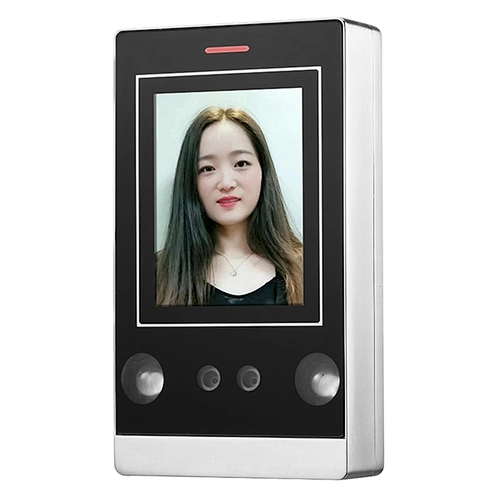

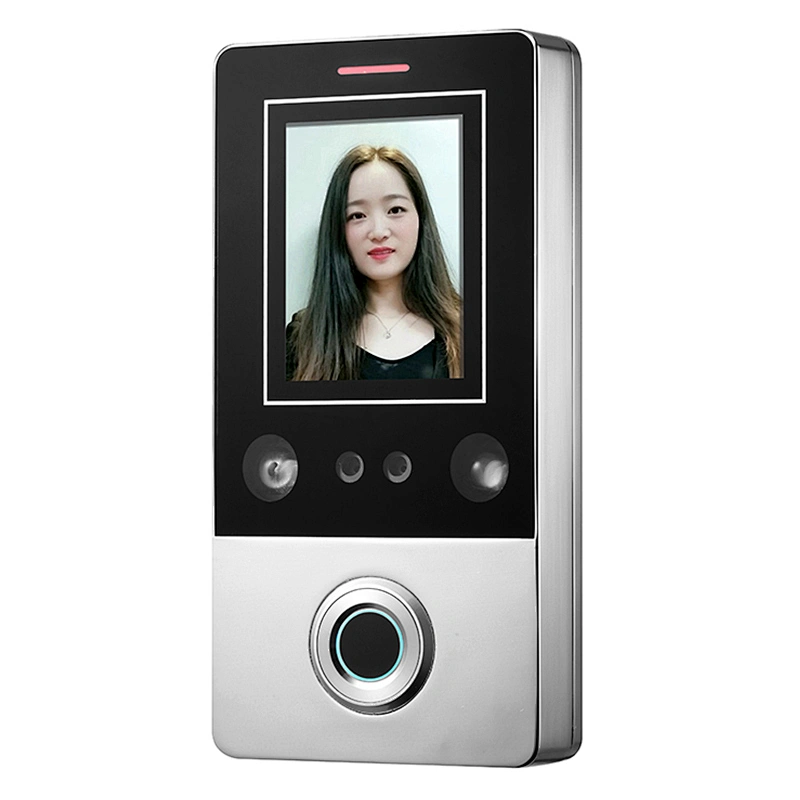

1. Features
- Support card, facial recognition , fingerprint, card + fingerprint, Card + facial recognition
- Can read 125KHz EM Card(Optional)
- Can read 13.56MHz Mifare card (Optional)
- Support Infrared remote controller operation.
- Can operate as a reader. The transmission format could be adjusted by users.
- Support admin card, admin fingerprint (add/delete)
- Can hold 10,000 card users,1000 facial users and 600 fingerprint users.
2. Technical Specifications
- Operating Voltage: DC12V
- Standby Current: ≤180mA
- Operating Current: ≤300mA
- Operating Temperature: -40～60℃
- Operating Humidity: 0～95%
- Access mode: Fingerprint, card, facial recognition or multiple combination
3. Wiring
No. | Color | Marks | Description |
1 | Green | D0 | Wiegand input (only when used as a reader) |
2 | White | D1 | Wiegand input (only when used as a reader) |
3 | Grey | ALARM | Alarm signal MOS tube drain output end (optional) |
4 | Yellow | OPEN | Exit button input end |
5 | Brown | D_IN | Door contact switch input end |
6 | Red | +12V | Positive power supply or AC power supply end |
7 | Black | GND | Negative power supply end |
8 | Blue | NO | Relay NO |
9 | Purple | COM | Relay COM |
10 | Orange | NC | Relay NC |
4. Diagram
Common Power Supply
Special Power Supply
Reader Mode
5. Packaging
0.53kg/pc
54pcs/ctn, 30kgs/ctn
Outside carton dimension: 56*40*41cm
