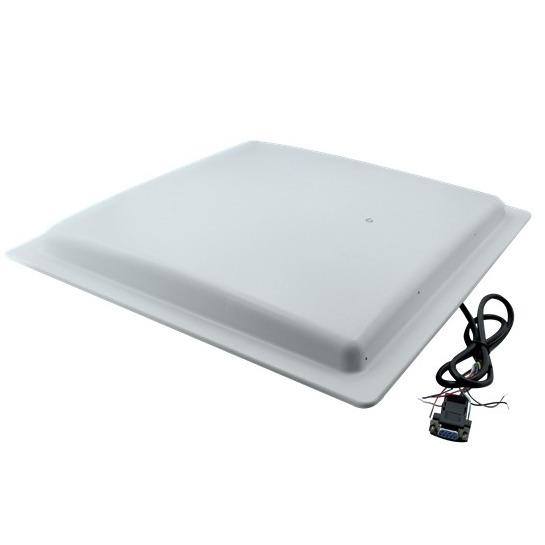

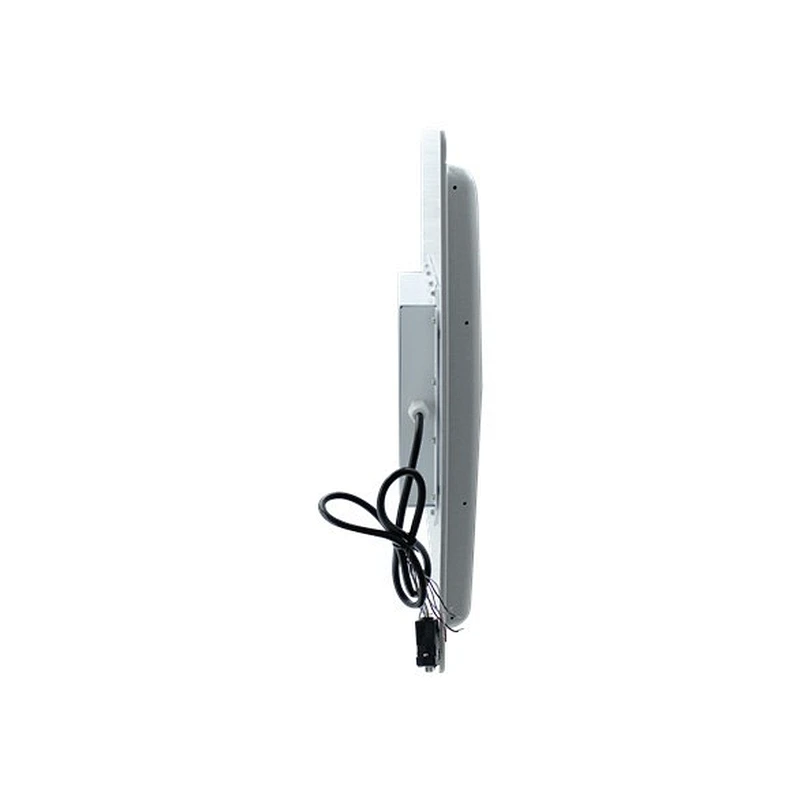

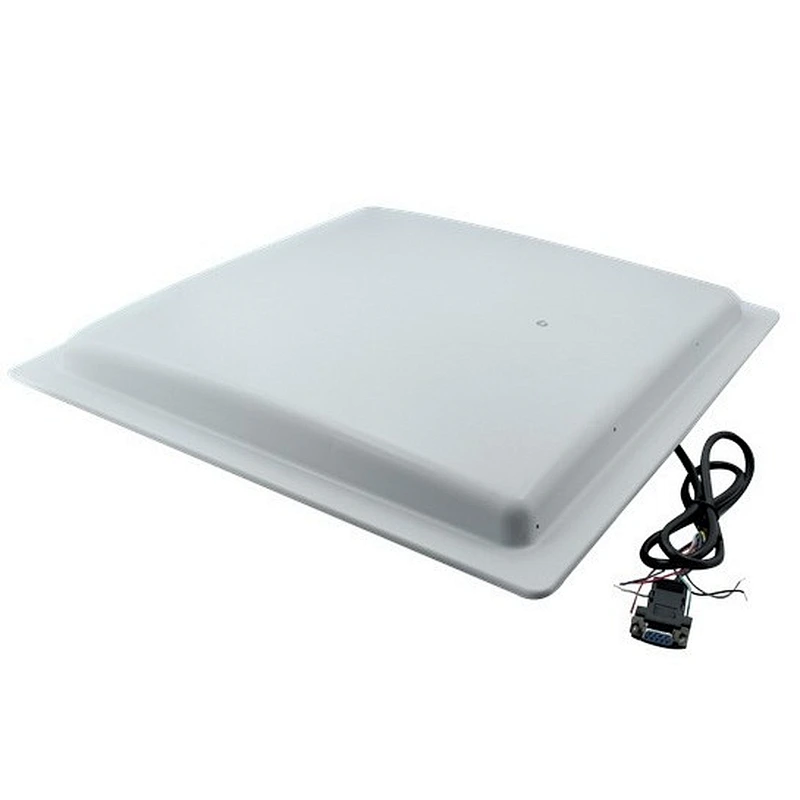

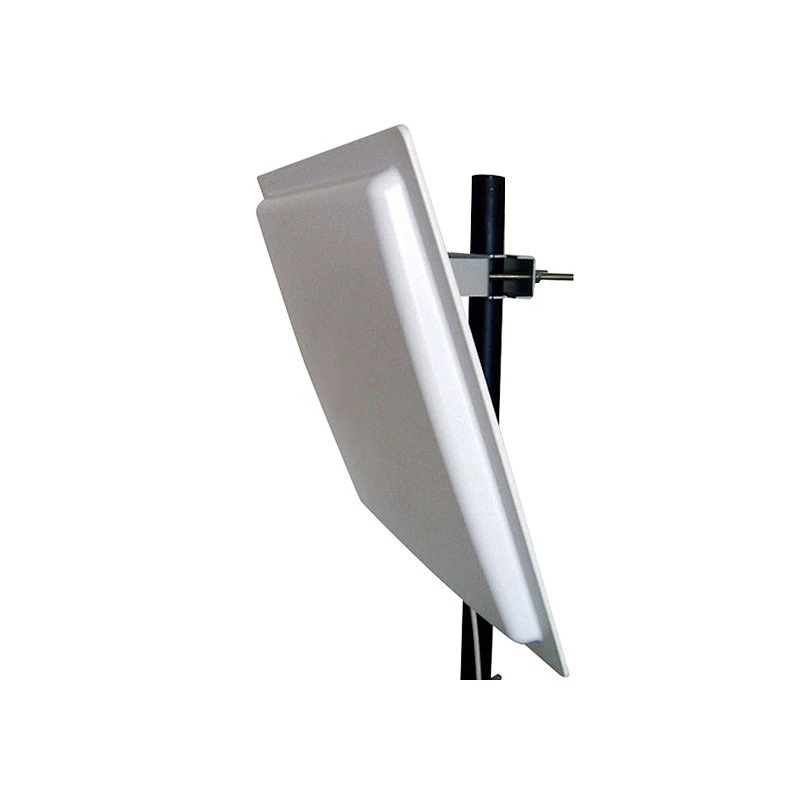

RFID UHF 15m long range card reader can be compatible with mult-protocol, integrated design,multi-tag reading, anti-collision, suitable for logistic and warehouse management, car parking system, access control, time attendance, bus transportation etc lots of field, can read and write , fast speed read and recognized. This is a popular integrated reader, Compatible with ISO18000-6C (EPC C1GEN2) and ISO18000-6B. It is an industry grade product for harsh environment, IP-65 protection case for water-proof, easy to install. Mainly application as follows: 1. Parking management: Long range intelligent parking management and automatic charge without stop the car. 2. Production line management: Goods identification for production flow. 3. Auto Access control: Long range access control management for custom, sea port. 4. Logistics and warehouse management. 5. People auto registry for important meeting or exhibition. 6. Automatic weighing and data capture.
Features:
• Support ISO18000-6C and ISO18000-6B protocol. • RS232, RS485, Wiegand26/34, RJ45 communication interface support.
• Advanced tag collision processing algorithm, high literacy rate. • High-Speed write data.
Specification:
Working Frequency
National standard (920~925MHz), America standard (902~928MHz), or customize other frequency
Support Protocol
ISO18000-6B, ISO18000-6C(EPC GEN2)
Frequency Hopping
FHSS or fixed frequency set by software
Working Way
automatically reading card at regular time, can set reading card way
Frequency Power
0~30dBm, be adjusted by software
Reading Distance
5-15M
Reading Sensitivity
dual polarization reading
Reading Speed
one label 64 bit ID number < 6ms
Antenna
build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna, gain 12dBi
