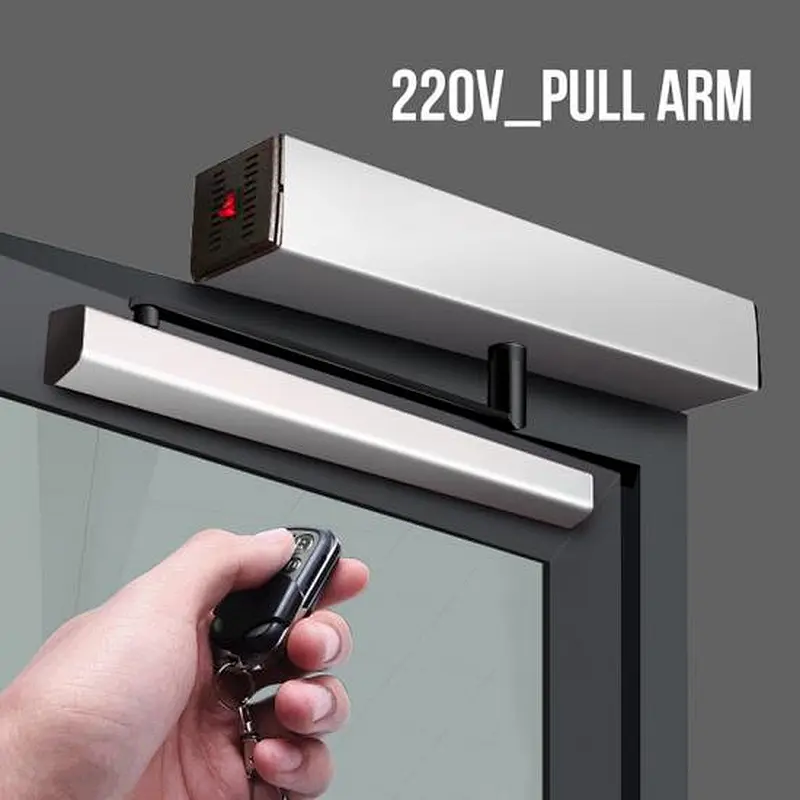

Adjustable Electric Gate Opener Swing Automatic Door Operator with interlock function
Main Features:
1. An advanced and reliable microprocessor controller is applied.

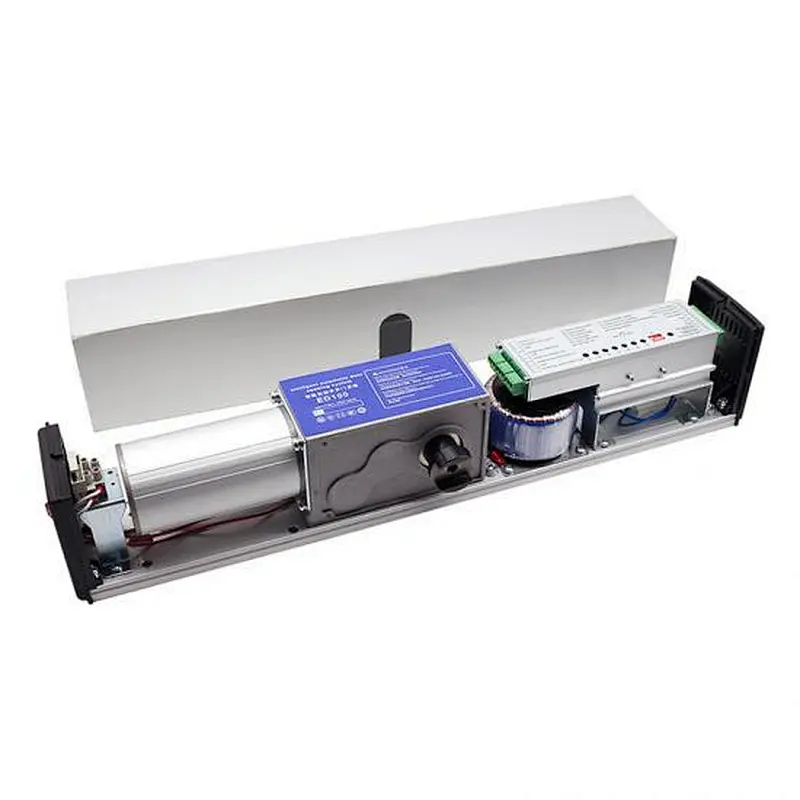

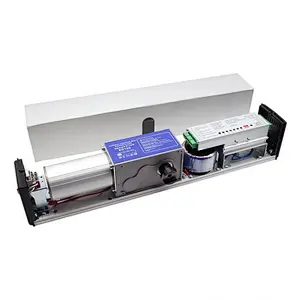

2. Brushless motor with self-locking, a long life span, and energy conservation.
3. Opening & Closing Speed adjustable.
4. Automatic/Lock/One Way/Half-open/Hold-open status can be set by remote key.
5. Opening and closing smooth with low noise.
6. Safety interlock and electric lock function.
7. Support multiple access control systems and Fire Alarm System
8. Auto-Reverse
Model No.: D02
Dimensions

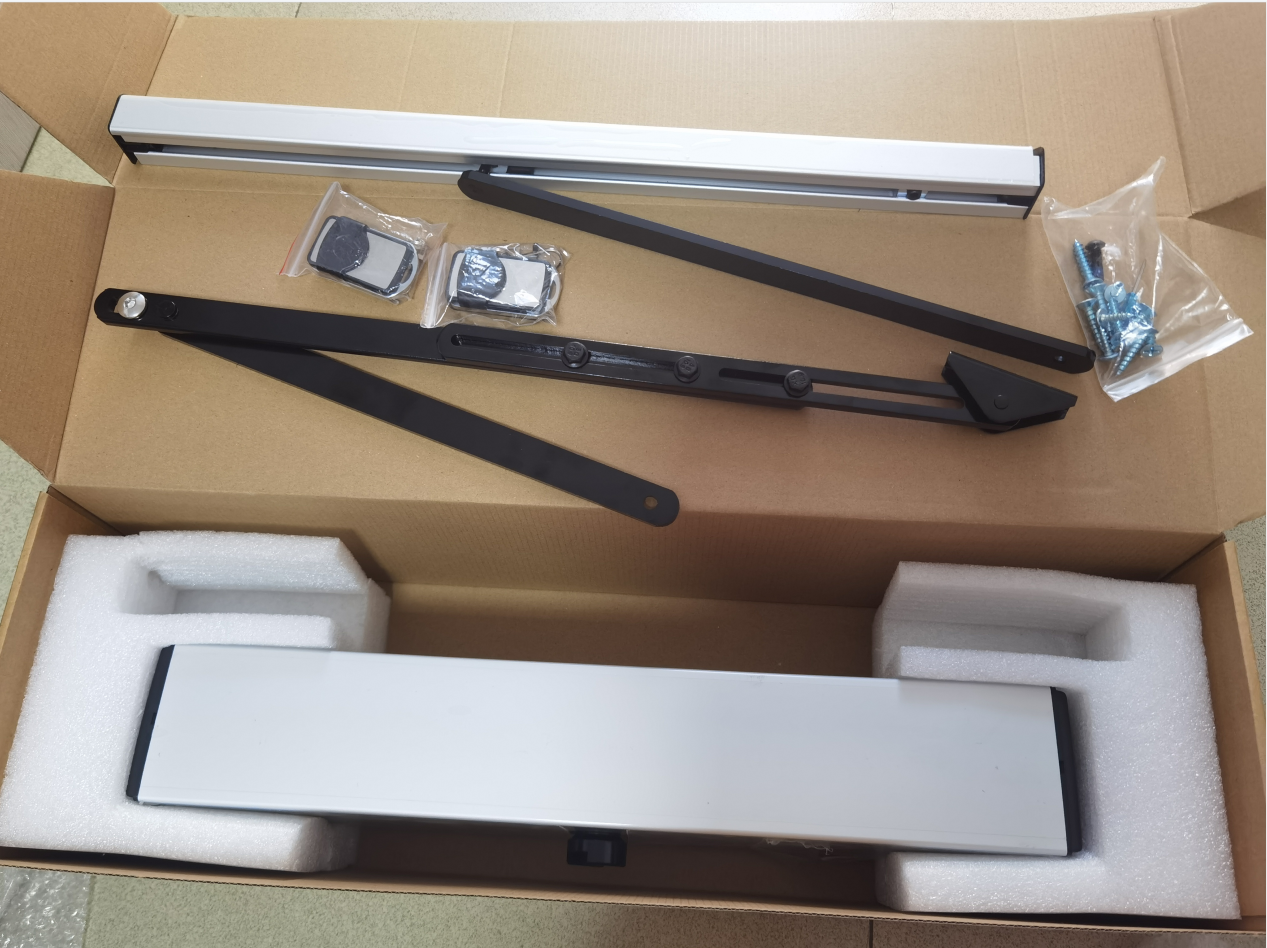

Packing
Main Features:
1. An advanced and reliable microprocessor controller is applied.
2. Brushless motor with self-locking, a long life span, and energy conservation.
3. Opening & Closing Speed adjustable.
4. Automatic/Lock/One Way/Half-open/Hold-open status can be set by remote key.
5. Opening and closing smooth with low noise.
6. Safety interlock and electric lock function.
7. Support multiple access control systems and Fire Alarm System
8. Auto-Reverse
Model No.: D02
| Model No. | D02L | D02S |

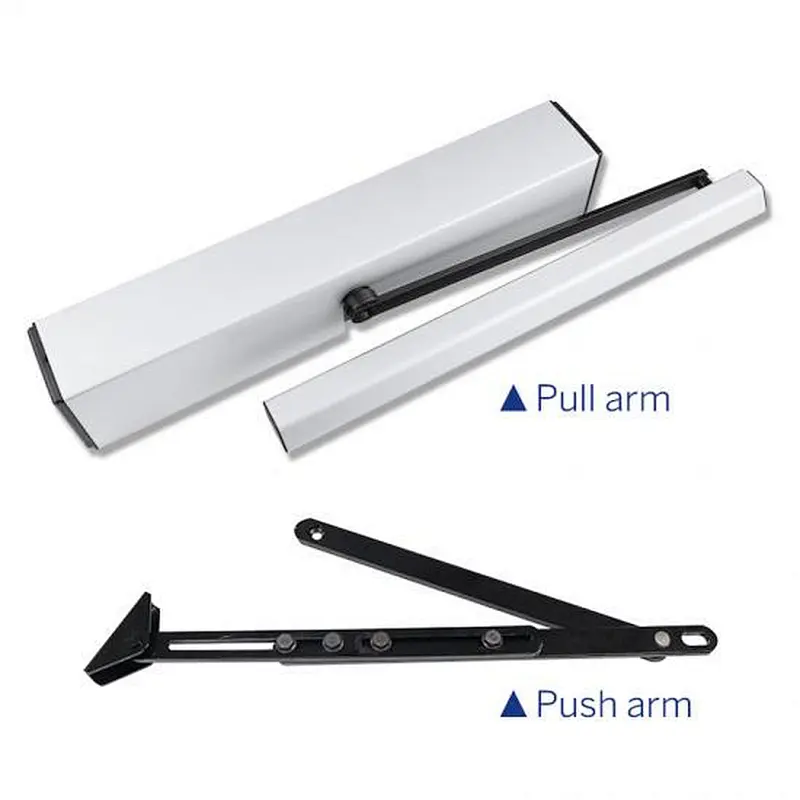

| An operator with arm | Pull arm | Push arm |
| Power supply | 220V | 220V |
| Opening time | 3~7s / 90° | |
| Opening and holding time | 1-30s | |
| Temperature | -20℃~55℃ | |
| Protection level | IP12D | |
| Dimensions | 475x98x81mm | |
| Packing box | 640x200x160mm | |
| Weight | 8.5kg | |
Dimensions
Packing
