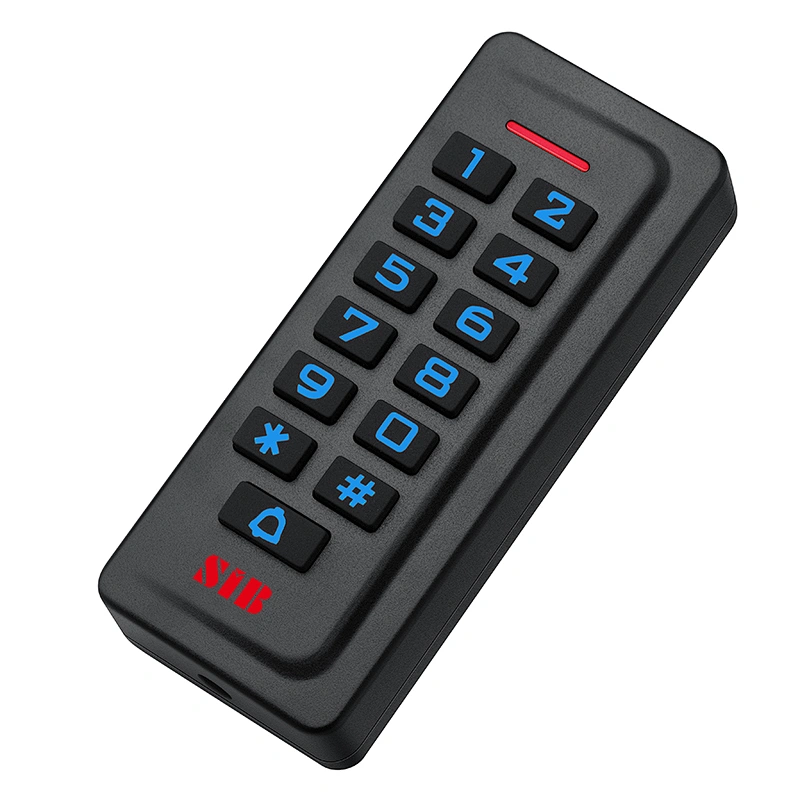

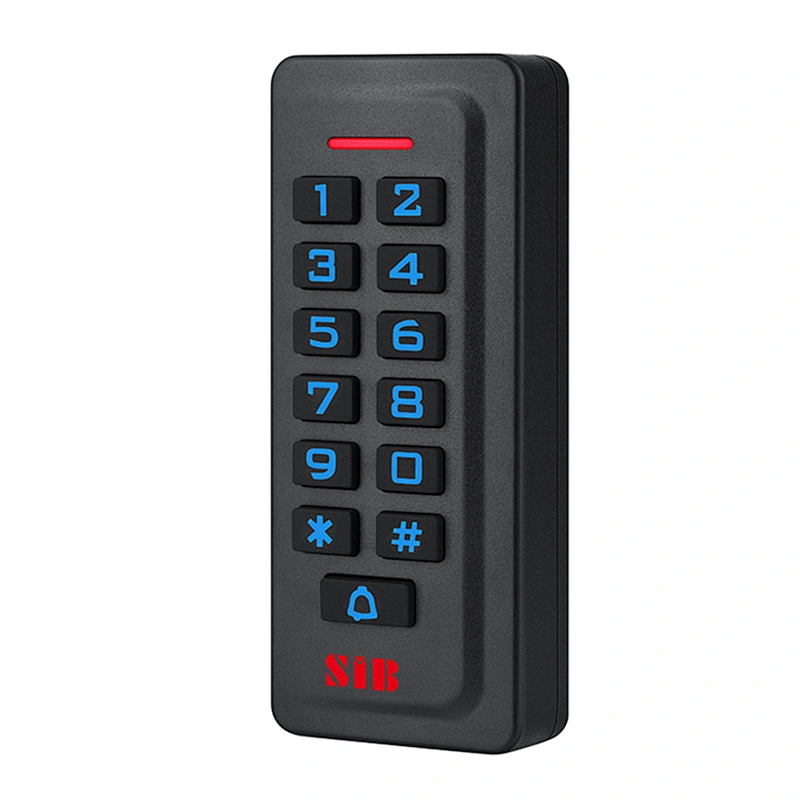

1. Features
- Full programming from keypad
- 2000 users, supports Card, PIN, Card + PIN
- Can set standalone access control mode, toggle relay mode, reader mode
- With data transconductance function
- Card, PIN, card+PIN accesses
- Adjustable Door Output time
- Very low power consumption (30mA)
- Fast operating speed, <20ms with 2000 users
- Lock output current short circuit protection
- Easy to install and program
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
2. Specifications
Operating Voltage | DC 12V±10% |
User Capacity | 2000 |
Card Reading Distance | 3-6 cm |
Active Current | ＜60mA |
Idle Current | 25±5 mA |
Lock Output Load | Max 3A |
Alarm Output Load | Max 20A |
Operating Temperature | -45℃～60℃ |
Operating Humidity | 10%- 90% RH |
Waterproof | Conforms to IP68 |
Adjustable Door Relay time | 0 -99 seconds |
Adjustable Alarm Time | 0- 3 minutes |
Wiegand Interface | Wiegand 26 bit |
Wiring Connections | Electric Lock, Exit Button, External Alarm,External reader |
3. Wiring
Colour | Function | Description |
Pink | BELL_A | Doorbell button one end |
Pink | BELL_B | Doorbell button to the other end |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
Purple | COM | Relay Public end, connect GND |
Orange | NC | Relay Closed end(connect negative electric lock"-") |
4. Installation
Remove the back cover from the keypad using the supplied special screw driver
Drill 2 holes on the wall for the Self tapping screws and I hole for the cable
Put the supplied rubber bungs to into the two holes
Fix the back cover firmly on the wall with 2 Self tapping screws
Thread the cable through the cable hole Attach the keypad to the back cover.
5. Diagram
Common Power Supply
Special Power Supply
6. Packaging
Model | Card Type | Waterproof Degree | Weight/PC | Q’ty/CTN | N.W/CTN | Outside Dimension |
K32EM | EM | IP65 | 0.18kgs | 100PCS | 19kgs | 57.5*47.5*23.7cm |
K32MF | Mifare | IP65 | 0.18kgs | 100PCS | 19kgs | 57.5*47.5*23.7cm |
