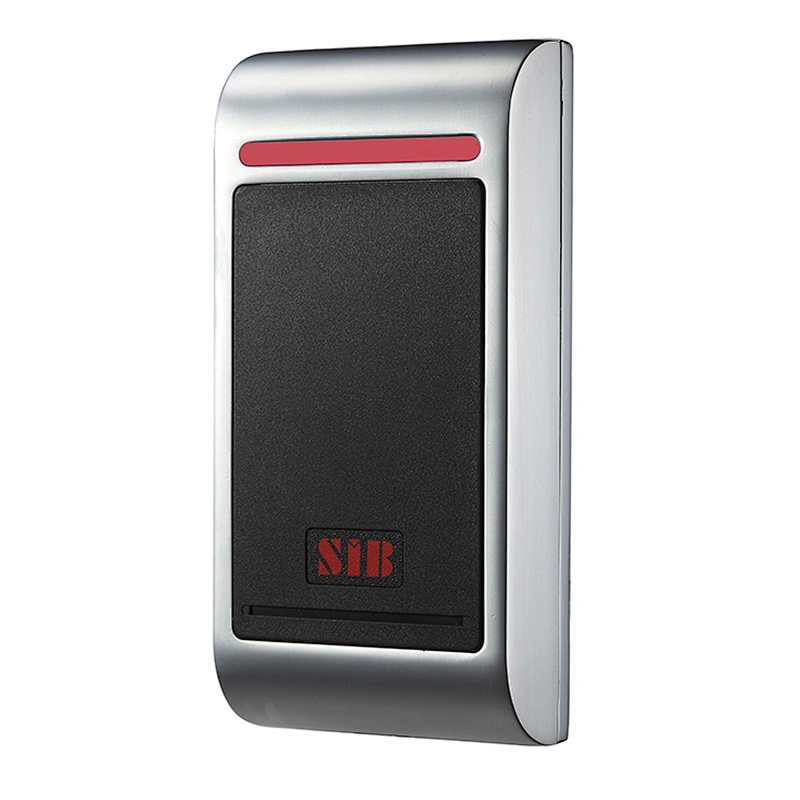

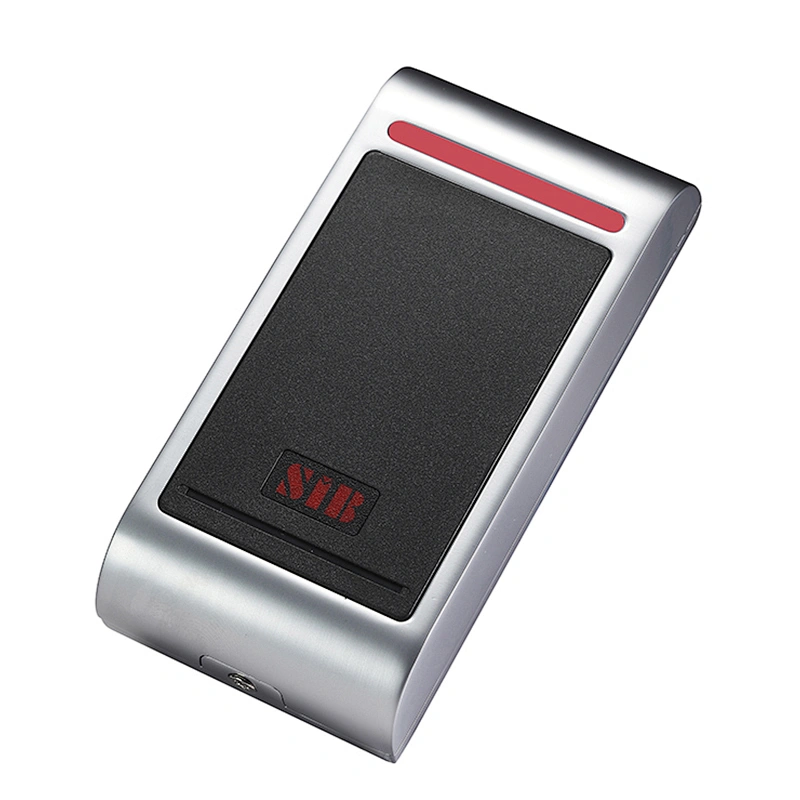

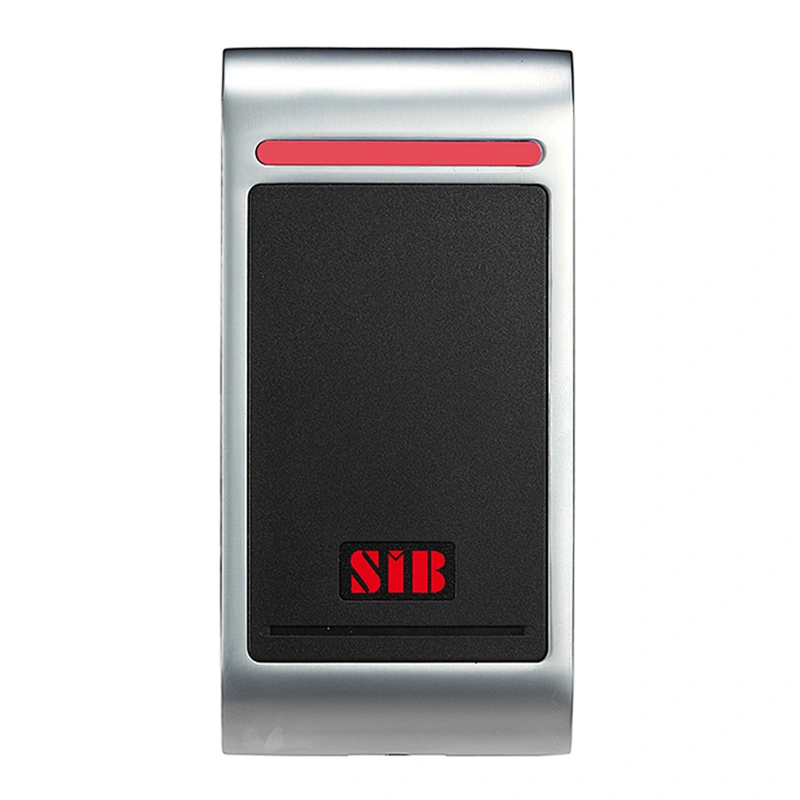

1. Features
- Operate by infrared remote
- Contain reader mode, the transmission format could be adjusted by users.
- Support multi access ways: Card, multi cards
- Strong Zinc Alloy Electroplated anti-vandal case
- Support admin card
- 10,000 card users
- Relay NO/NC/COM output
2. Technical Specifications
- Operating Voltage: DC 12-24V
- Standby Current: ≤ 35mA
- Operating Current: ≤100mA
- Operating Temperature: -35℃~60℃
- Operating Humidity: 0%~95%
- Electric lock signal relay contact current：≤1A
- Alarm signal MOS tube output current: ≤1A
- Unlocking time: 0~300s adjustable
3. Installation
Remove the back cover from the keypad using the supplied special screw driver
Drill 2 holes on the wall for the self-tapping screws and hole for the cable
Put the supplied rubber bungs to into the two holesFix the back cover firmly on the wall with 2self-tapping screws
Thread the cable through the cable hole
Attach the keypad to the back cover. (as following illustration)
4. Wiring
Colour | Function | Description |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
Purple | COM | Relay Public end, connect GND |
Orange | NC | Relay Closed end(connect negative electric lock"-") |
5. Diagram
Common Power Supply
Special Power Supply
Reader Mode
6. Packaging
Model | Card Type | Waterproof Degree | Weight/PC | Q’ty/CTN | N.W/CTN | Outside Dimension |
M2EM | EM | IP68 | 0.43kgs | 54PCS | 24.7kgs | 56*40*41cm |
M2MF | Mifare | IP68 | 0.43kgs | 54PCS | 24.7kgs | 56*40*41cm |
M2EH | HID | IP68 | 0.43kgs | 54PCS | 24.7kgs | 56*40*41cm |
