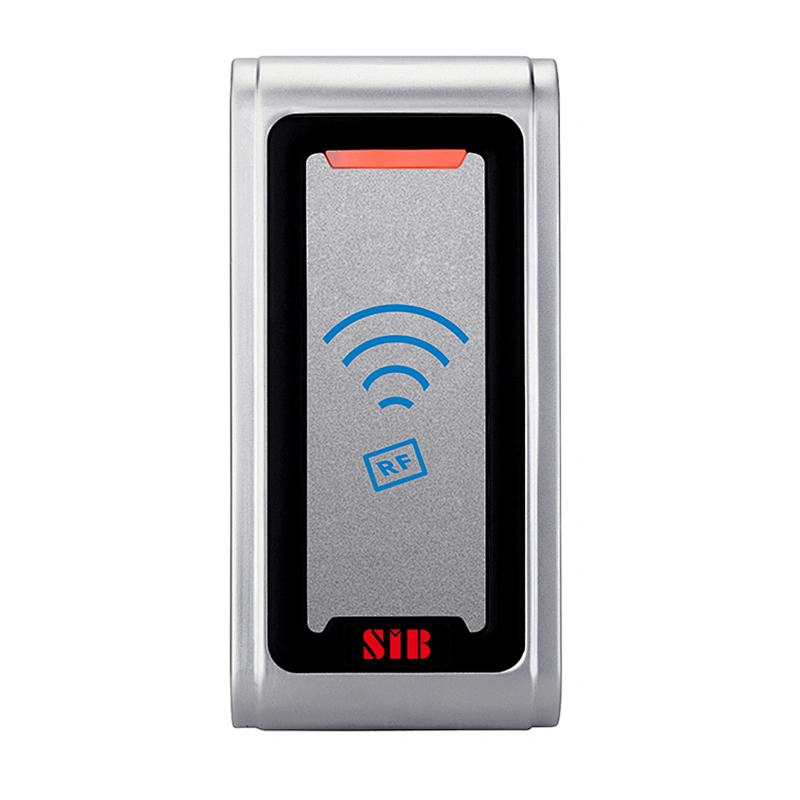

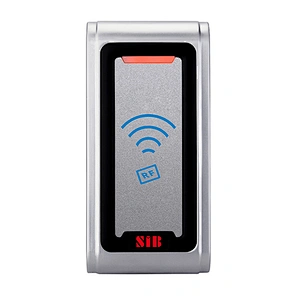

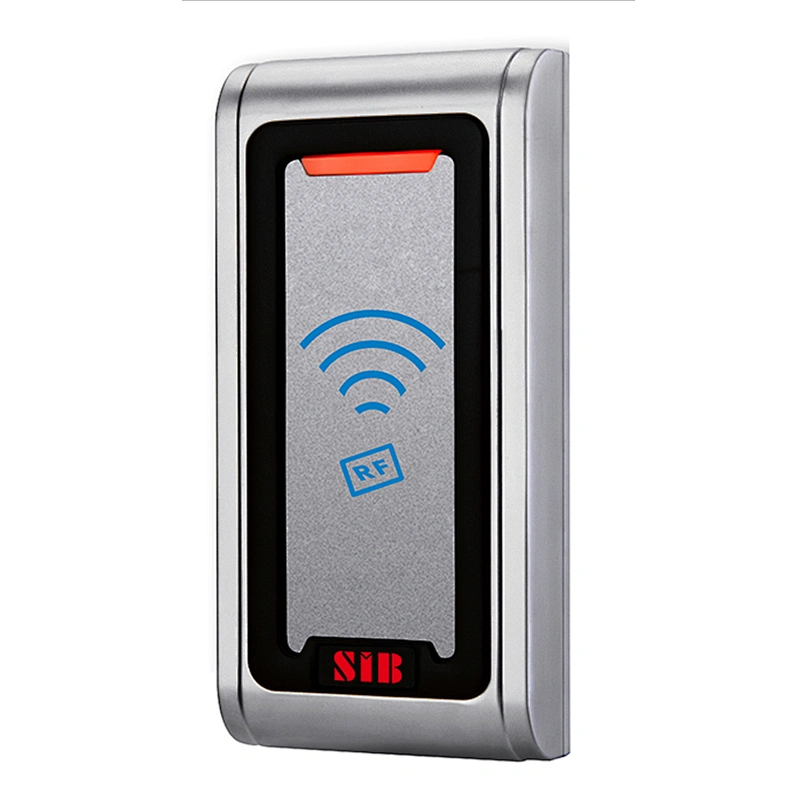

1.Features
Operate by infrared remote
Waterproof IP68
Strong Zinc Alloy Electroplated anti-vandal case
Contain reader mode, the transmission format could be adjusted by users.
Support multi access ways: Card, multi cards
Support admin card
10,000 card users
Relay NO/NC/COM output2.Technical Specifications
2. Specification
Operating Voltage: DC 12-24V
Standby Current: ≤ 35mA
Operating Current: ≤100mA
Operating Temperature: -35℃~60℃
Operating Humidity: 0%~95%
Electric lock signal relay contact current：≤1A
Alarm signal MOS tube output current: ≤1A
Unlocking time: 0~300s adjustable
3. Installation
Remove the back cover from the keypad using the supplied special screw driver
Drill 2 holes on the wall for the self-tapping screws and hole for the cable
Put the supplied rubber bungs to into the two holesFix the back cover firmly on the wall with 2self-tapping screws
Thread the cable through the cable hole
Attach the keypad to the back cover. (as following illustration)
4. Wiring
Colour | Function | Description |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
Purple | COM | Relay Public end, connect GND |
Orange | NC | Relay Closed end(connect negative electric lock"-") |

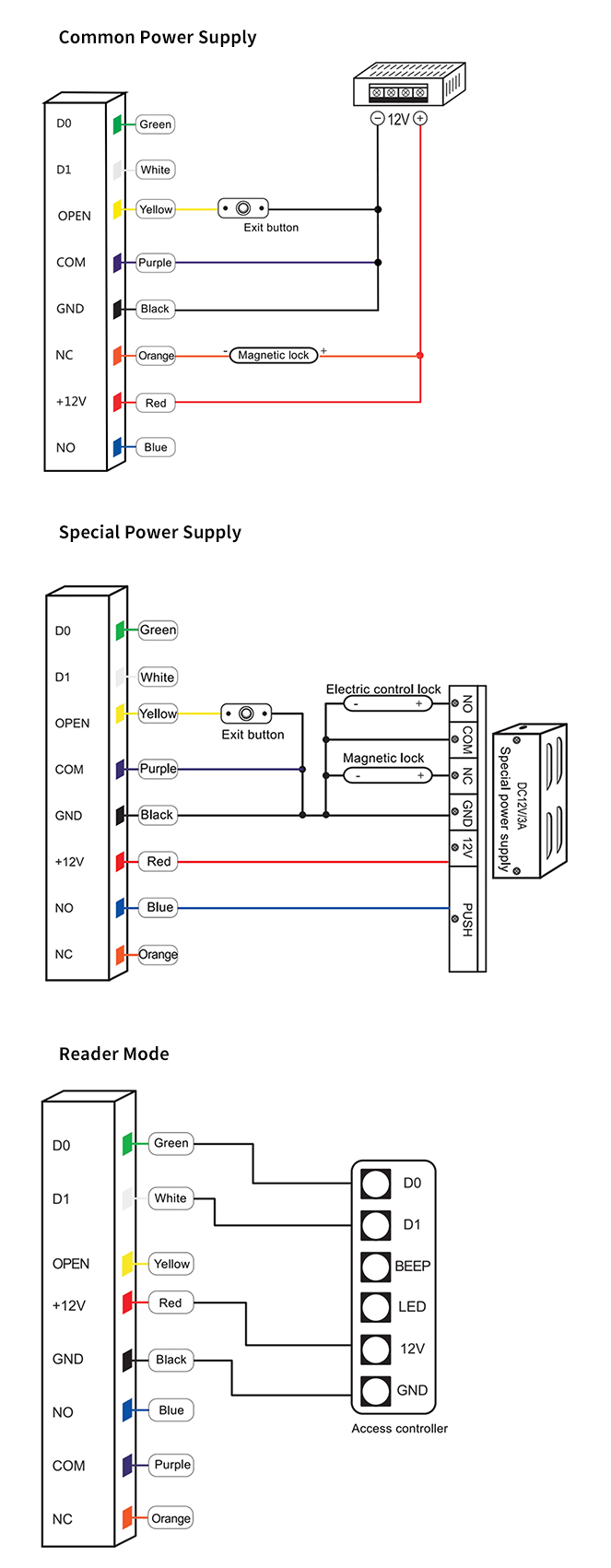

5. Diagram
6. Packing list

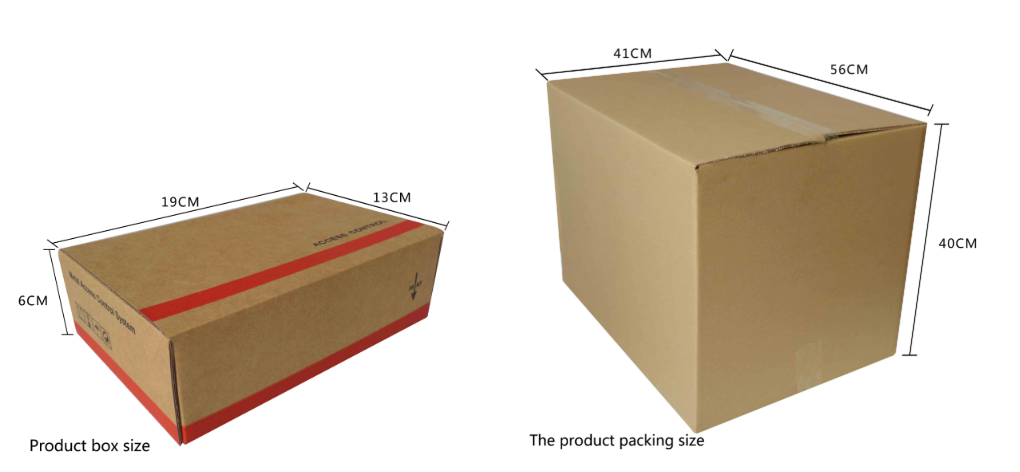

Name | Quantity | Remarks |
Keypad | 1 | |
User manual | 1 | |
Screw driver | 1 | Φ20mm×60mm,Special for keypad |
Rubber plug | 2 | Φ6mm×30 mm, used for fixing |
Self tapping screws | 2 | Φ4mm×28 mm, used for fixing |
Star screws | 1 | Φ3mm×6mm,used for fixing |
Unit packing size | 19*13*6cm | |
Carton box size | 56*41*40cm | |
Quantity of each carton | 54pcs | |
