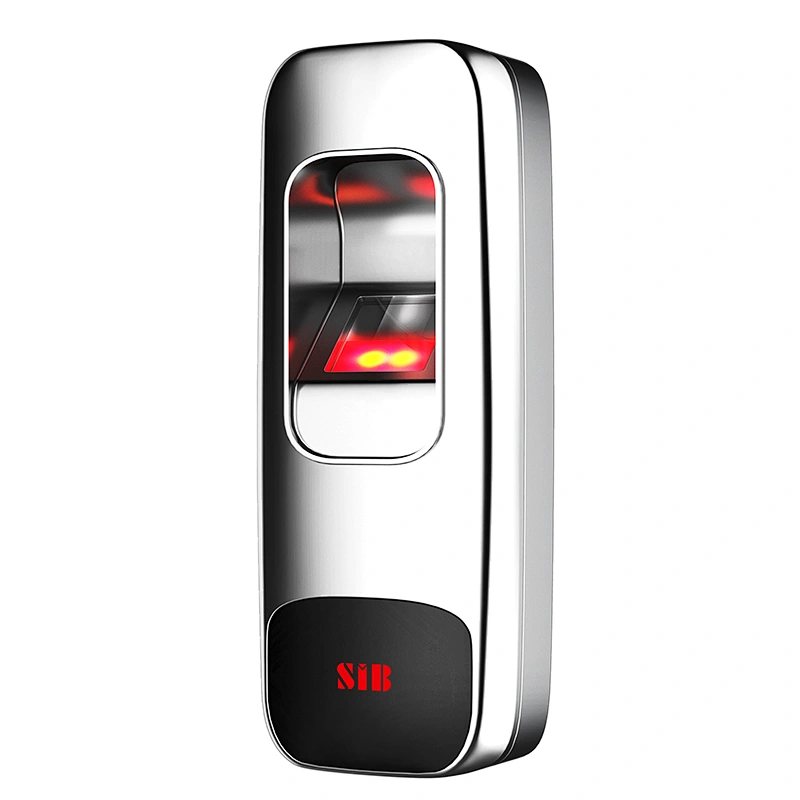

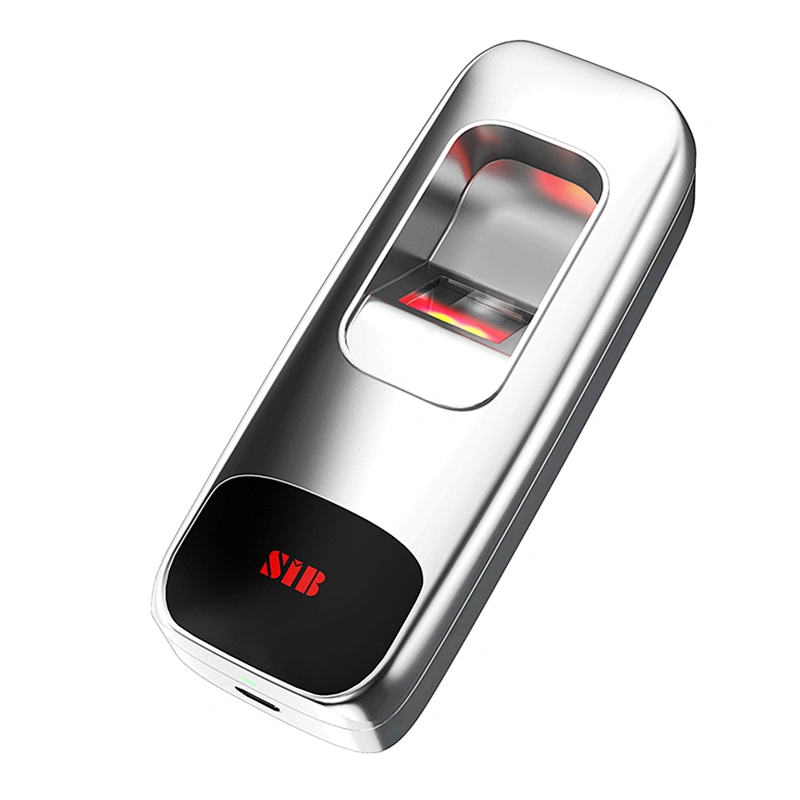

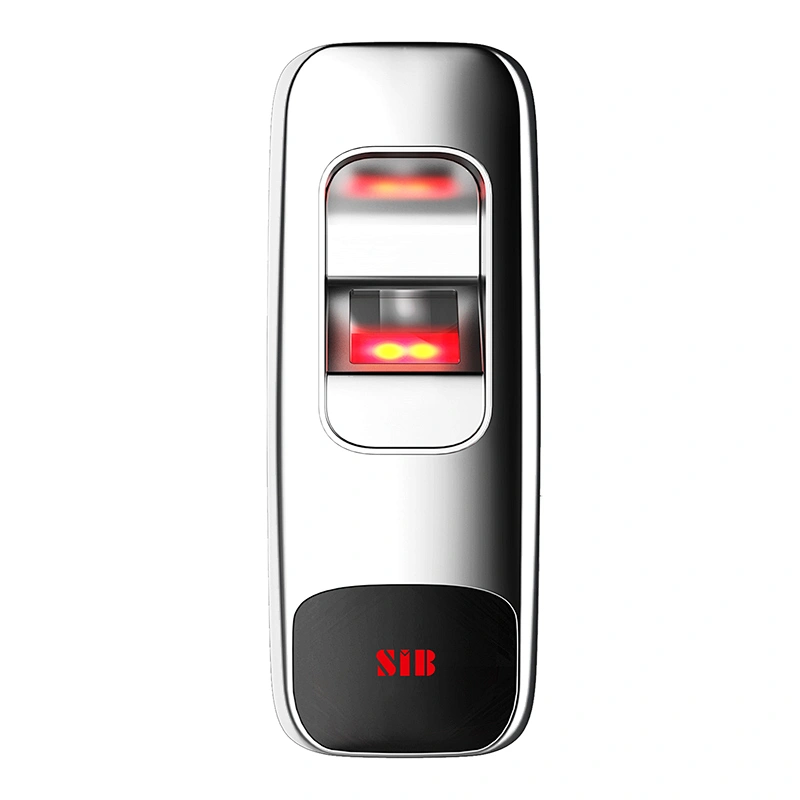

1. Features
- Read 125KHz EM Card
- Operate by infrared remote

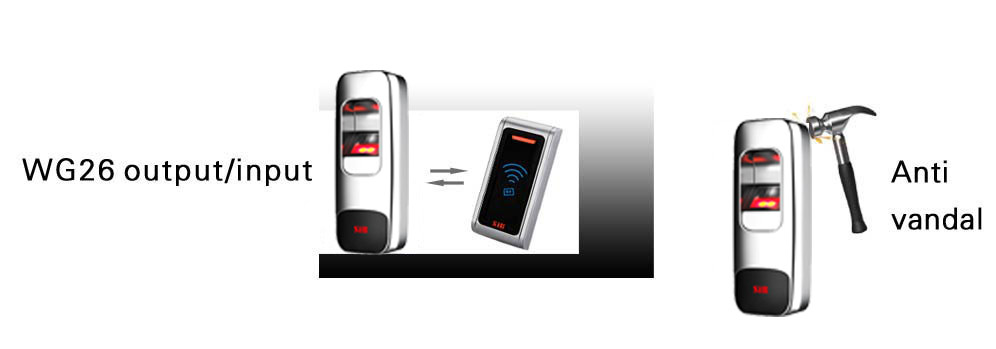

- Can be used as wg26 reader .
- Support multi access ways: Card+Fingerprint, multi cards or multi fingerprints
- Support admin card/admin fingerprint
- 500 card users and 200 fingerprint users
- Relay NO/NC/COM output
2. Technical Specifications
- Operating Voltage: DC 12V
- Standby Current: ≤ 35mA
- Operating Current: ≤100mA
- Operating Temperature: -20℃~60℃
- Operating Humidity: 0%~95%
- Electric lock signal relay contact current：≤1A
- Alarm signal MOS tube output current: ≤1A
- Unlocking time: 0~300s adjustable
3. Wiring
Colour | Function | Description |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V-DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
Purple | COM | Relay Public end, connect GND |
Orange | NC | Relay Closed end(connect negative electric lock"-") |
4. Diagram

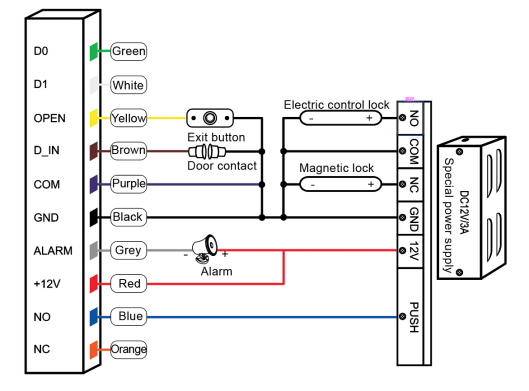

Common Power Supply
Note: The door contact and alarm function are optional

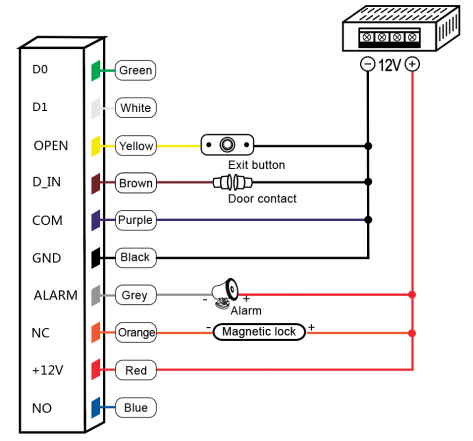

Special Power Supply
Note: The door contact and alarm function are optional

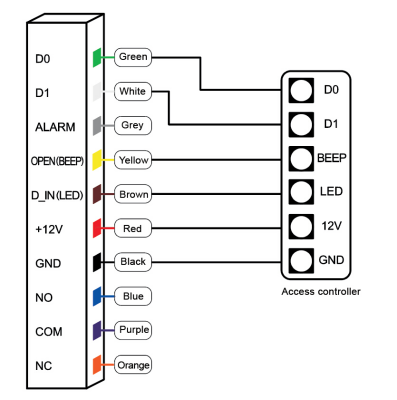

Reader Mode
5. Packaging
0.36kg/pc
54pcs/ctn, 21kgs/ctn
Outside carton dimension: 56*40*41cm
