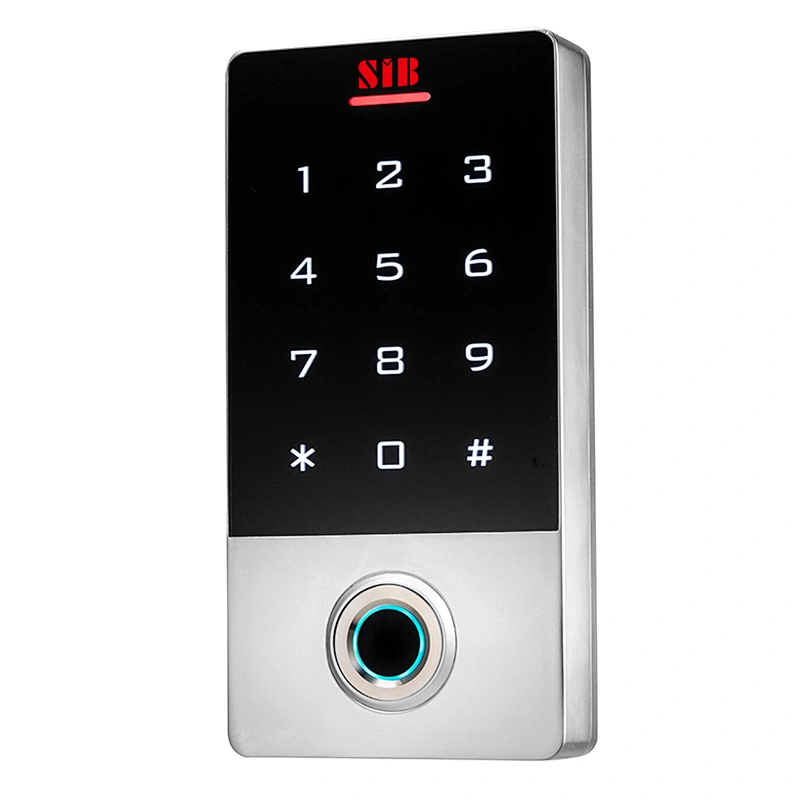

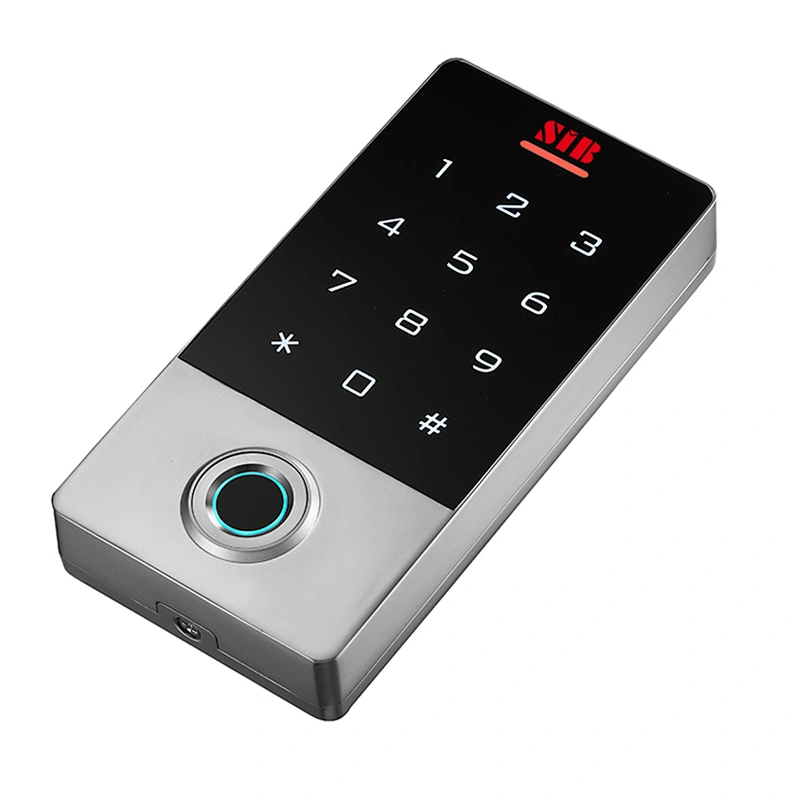

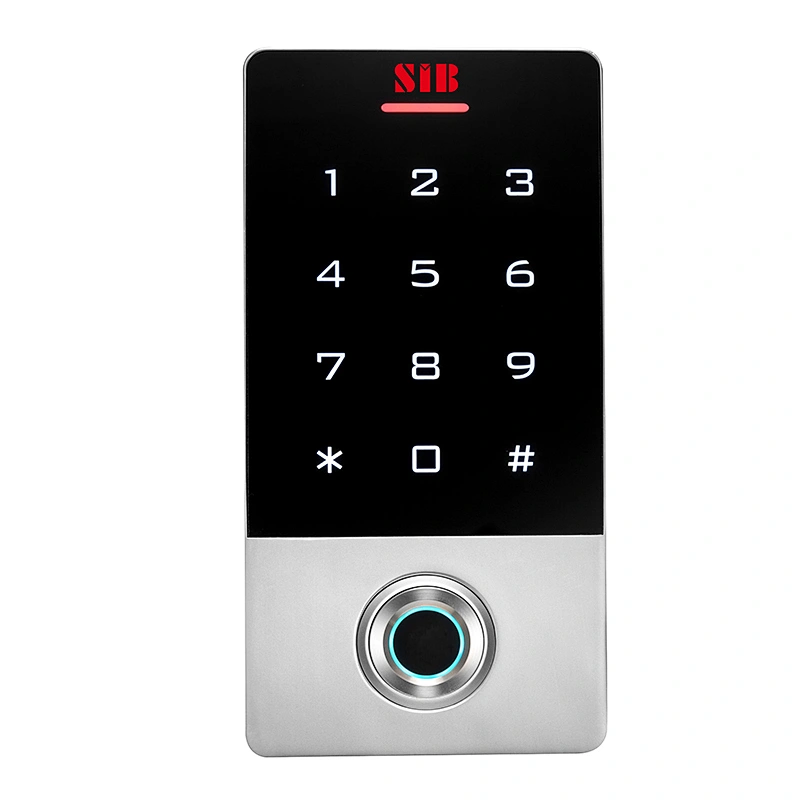

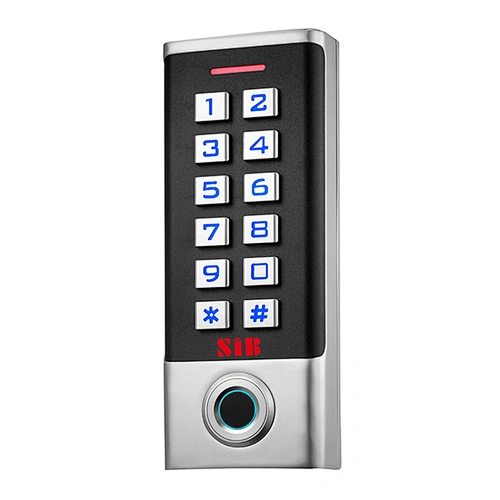

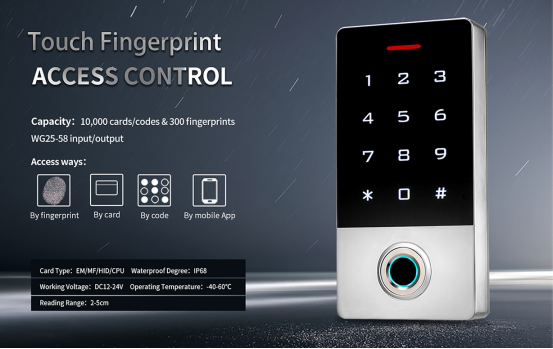

1. Features
- Read 125KHz EM Card and HID Card (Optional)
- Read 13.56MHz Mifare card and CPU card (Optional)
- Touch backlight keypad
- Contain reader mode, the transmission format could be adjusted by user.
- Support admin add card and admin delete card
- 10,000 card/pin users and 600 fingerprint users.
2. Technical Specifications
- Operating Voltage: DC 12-24V
- Standby Current: ≤35mA
- Operating Current: ≤100mA
- Operating Temperature: -40℃~60℃
- Operating Humidity: 0%~95%
- Access ways: Fingerprint, card, code, or multiple combination methods,Mobile APP
3. Wiring
Colour | Function | Description |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
Purple | COM | Relay Public end, connect GND |
Orange | NC | Relay Public end, connect NC |
4. Diagram
Common Power Supply
Note: The door contact and alarm function are optional
Special Power Supply
Note: The door contact and alarm function are optional
Reader Mode
5. Packaging
0.57kg/pc
54pcs/ctn, 32kgs/ctn
Outside carton dimension: 56*41*40cm
