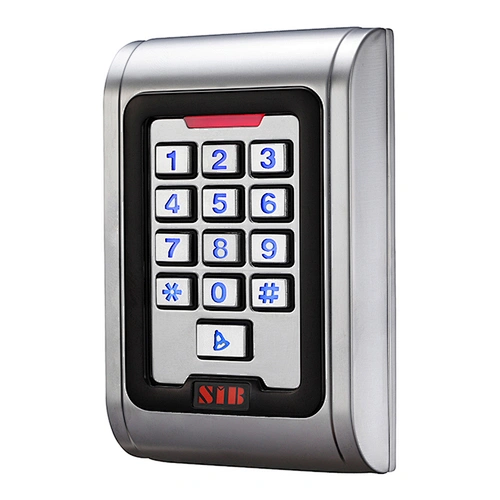

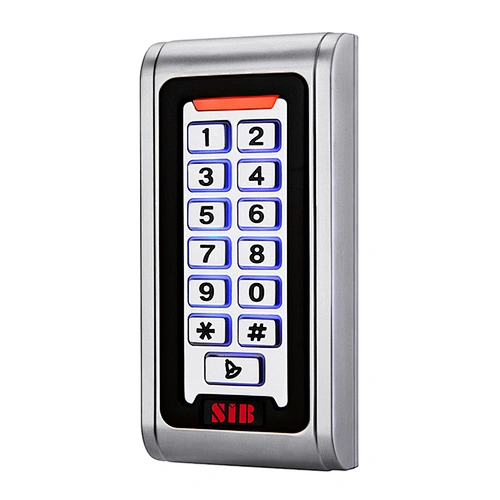

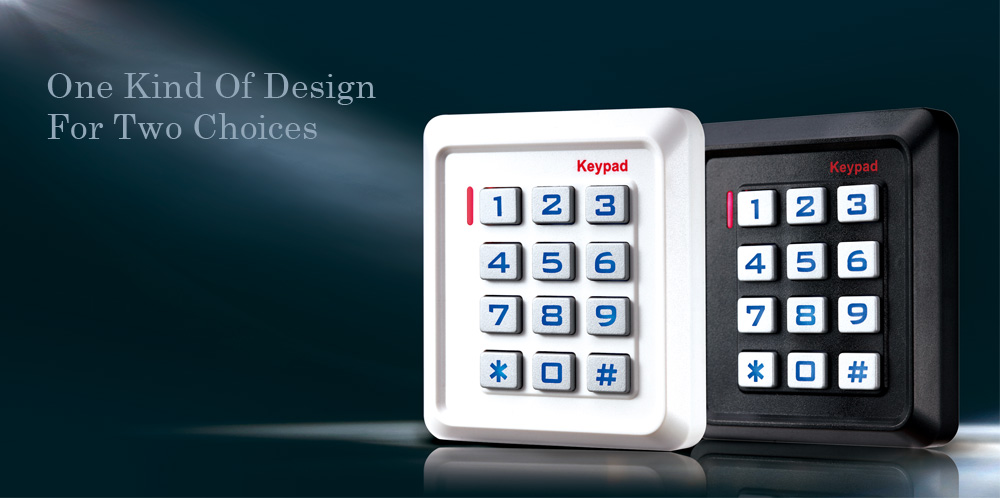

1. Features
- Very low power consumption,standby current less than 80mA
- Backlight keys
- Wiegand output, Wg26 card number format
- Built-in buzzer
- Doorbell button can offer independent operation of any doorbell system
2. Specification
Card Type：EM/MF | Waterproof Degree：IP65 |
Operating Voltage：DC9-12V | Standby Current：≤30mA |
Reading Distance: 2-5cm | Operating Humidity：-45～60℃ |
Operating Humidity：10%-90%RH | Searching Speed：Less than 0.1S between reading card and opening the door |
3. Wiring Diagram
No. | Color | Marks | Description |
1 | BELL-A | Pink | Doorbell button one end |
2 | BELL-B | Pink | Doorbell button on the other end |
3 | LED | Blue | Connect controller LED |
4 | Beeper | Yellow | Connect controller beeper |
5 | D0 | Green | WG output line D0 |
6 | D1 | White | WG output line D1 |
7 | +12V | Red | Power supply +12V |
8 | GND | Black | Power supply -12V |

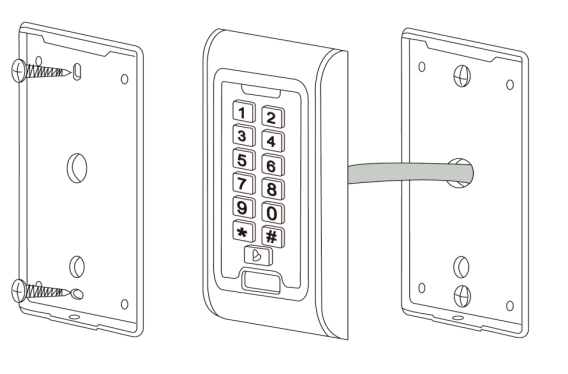

4. Installation
Remove the back cover from the keypad using the supplied special screw driver,Drill 2 holes on the wall for the Self tapping screws and I hole for the cable
Put the supplied rubber bungs to into the two holes,Fix the back cover firmly on the wall with 2 Self tapping screws
Thread the cable through the cable hole Attach the keypad to the back cover,Remove the back cover from the keypad using the supplied special screw driver
5. Packaging
0.15kg/pc
100pcs/ctn, 15kgs/ctn

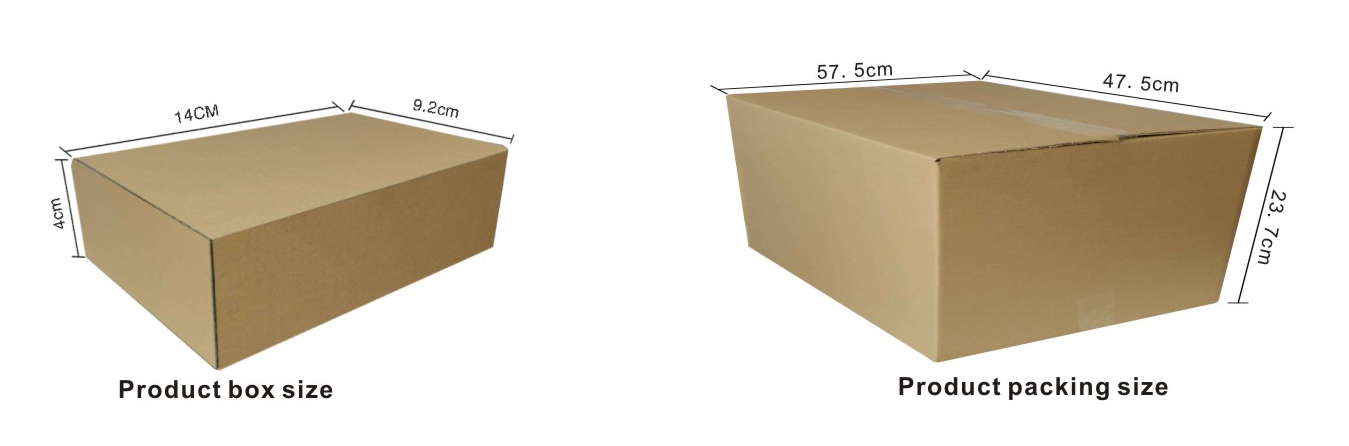

Outside carton dimension: 57.5*47.5*23.7cm
Inside box dimension: 135*90*40mm
