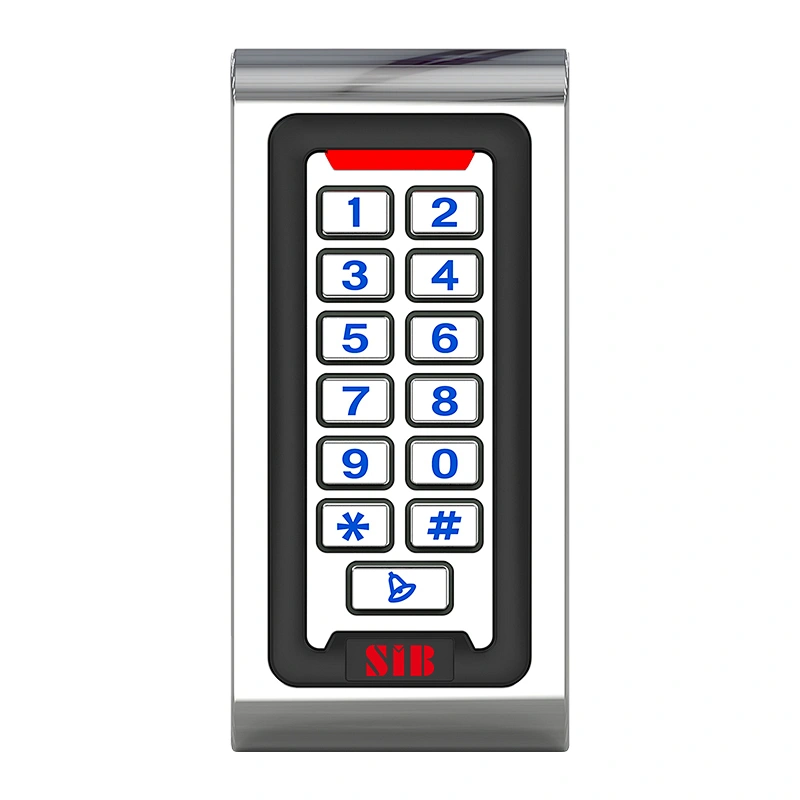

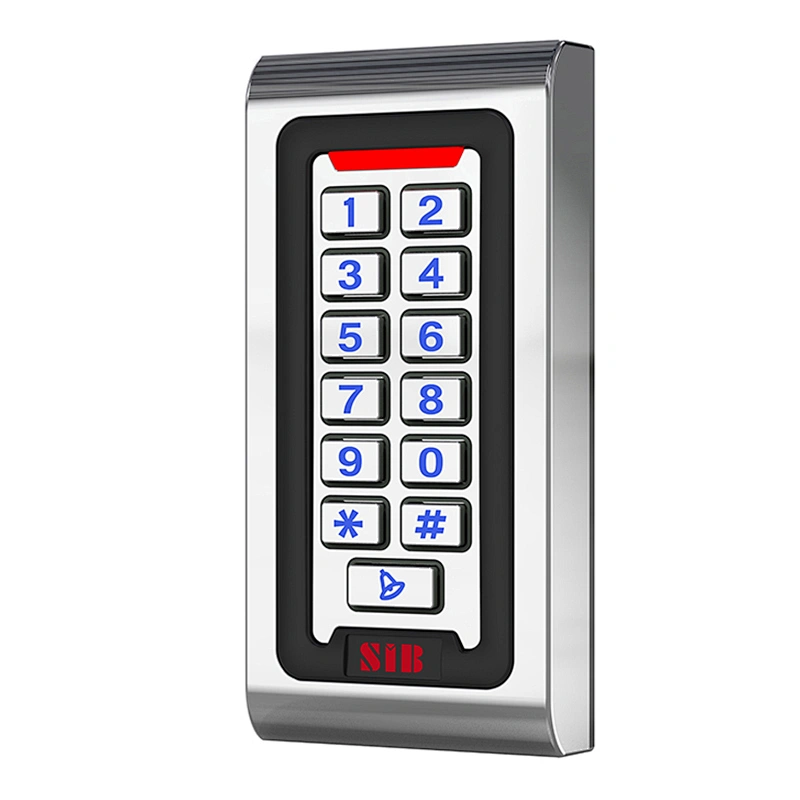

1. Features
* Strong Zinc Alloy Electroplated anti-vandal case
* Very low power consumption,standby current less than 80mA
* Backlight keys
* Wiegand output, Wg26 card number format
* Built-in buzzer
* Doorbell button can offer independent operation of any doorbell system
2. Specification
Operating Voltage | 9-16V DC |
Card type | EM,Mifare |
Reading Distance | 3-6 cm |
Communication Distance | 100M |
Working Current | 15-20 mA |
Operating Temperature | -45℃～60℃ |
Operating Humidity | 10%- 90% RH |
Waterproof | Conforms to IP68 |
Dimension | 120*80*25 MM |
3. Wiring Diagram
Wire No. | Function | Color | Description |
1 | BELL-A | Purple | Doorbell button one end |
2 | BELL-B | Grey | Doorbell button to the other end |
3 | LED | Blue | Connect controller LED |
4 | Beeper | Yellow | Connect controller beeper |
5 | D0 | Green | WG output line D0 |
6 | D1 | White | WG output line D1 |
7 | +12V | Red | Power supply +12V |
8 | GND | Black | Power supply -12V |
4. Installation
Remove the back cover from the keypad using the supplied special screw driver,Drill 2 holes on the wall for the Self tapping screws and I hole for the cable
Put the supplied rubber bungs to into the two holes,Fix the back cover firmly on the wall with 2 Self tapping screws
Thread the cable through the cable hole Attach the keypad to the back cover,Remove the back cover from the keypad using the supplied special screw driver
5. Packing
