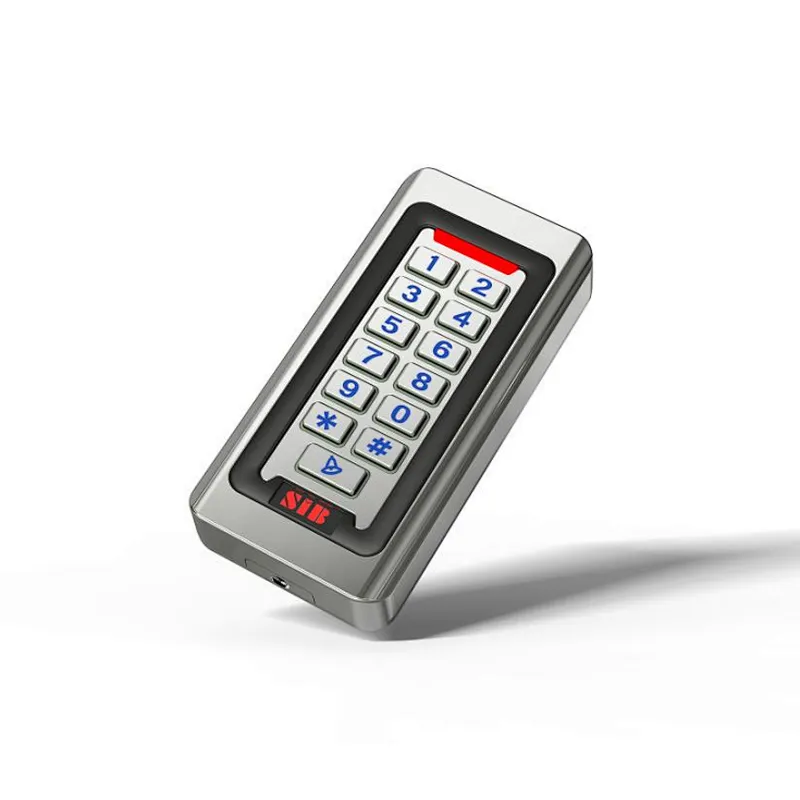

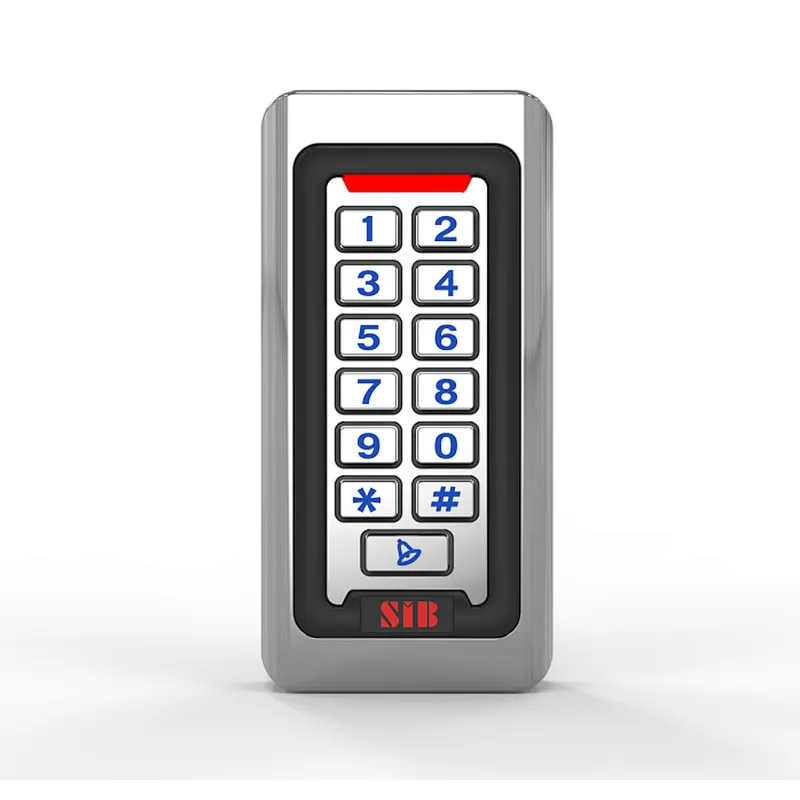

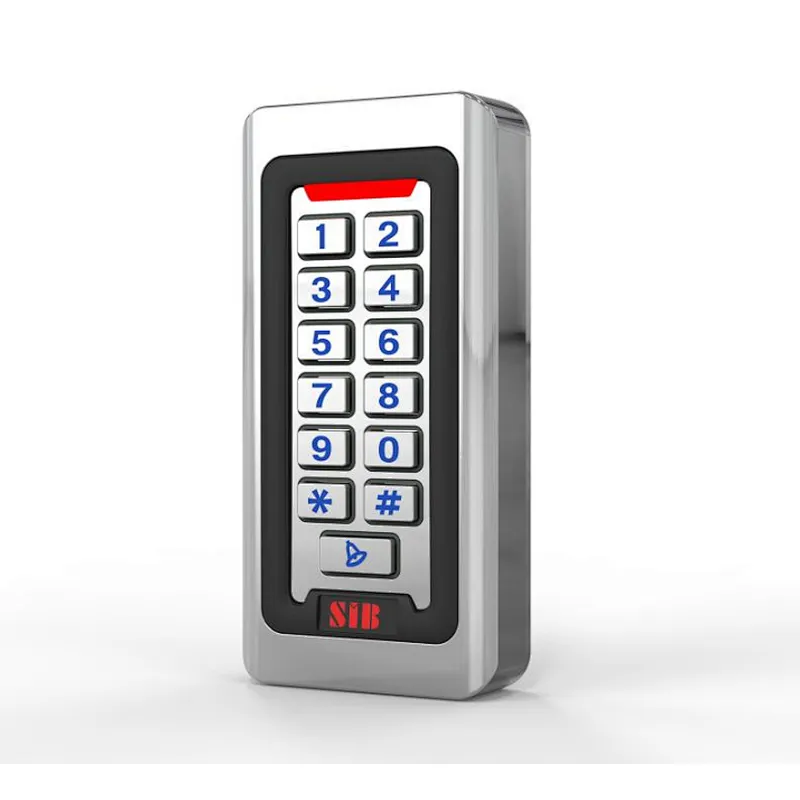

1.Features
- Waterproof, conforms to IP68
- Strong Zinc Alloy Electroplated anti-vandal case
- Capacity: 10,000 cards/codes
- Multiple accesses, card/ code/ Tuya APP
- Can be used as a stand alone keypad
- Backlight keys
- Wiegand 26 input for connection to external reader
- Wiegand 26 output for connection to a controller
- Adjustable Door Output time
- Very low power consumption (30mA)
- With data backup function
- Can set relay toggle mode, pure reader mode(WG26/34/37/58 output), standalone access control mode
- Easy to install and program
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
2. Specifications
Operating Voltage | DC 12V±10% |
User Capacity | 2000 |
Card Reading Distance | 3-6 cm |
Active Current | ＜60mA |
Idle Current | 25±5 mA |
Lock Output Load | Max 3A |
Alarm Output Load | Max 20A |
Operating Temperature | -45℃～60℃ |
Operating Humidity | 10%- 90% RH |
Waterproof | Conforms to IP68 |
Adjustable Door Relay time | 0 -99 seconds |
Adjustable Alarm Time | 0- 3 minutes |
Wiegand Interface | Wiegand 26 bit |
Wiring Connections | Electric Lock, Exit Button, External Alarm,External reader |
3.Wiring
Colour | Function | Description |
Pink | BELL_A | Doorbell button one end |
Pink | BELL_B | Doorbell button to the other end |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
Purple | COM | Relay Public end, connect GND |
Orange | NC | Relay Closed end(connect negative electric lock"-") |
4. Installation
Remove the back cover from the keypad using the supplied special screw driver
Drill 2 holes on the wall for the Self tapping screws and I hole for the cable
Put the supplied rubber bungs to into the two holes
Fix the back cover firmly on the wall with 2 Self tapping screws
Thread the cable through the cable hole Attach the keypad to the back cover.
5. Diagram
Common Power Supply
Special Power Supply
Reader Mode
6. Packaging
Model | Card Type | Waterproof Degree | Weight/PC | Q’ty/CTN | N.W/CTN | Outside Dimension |
S602EM.e(Wifi) | EM | / | 0.38kgs | 54PCS | 22kgs | 56*40*41cm |
| S602EM-W.e(Wifi) | EM | IP68 | 0.48kgs | 54PCS | 27.4kgs | 56*40*41cm |
