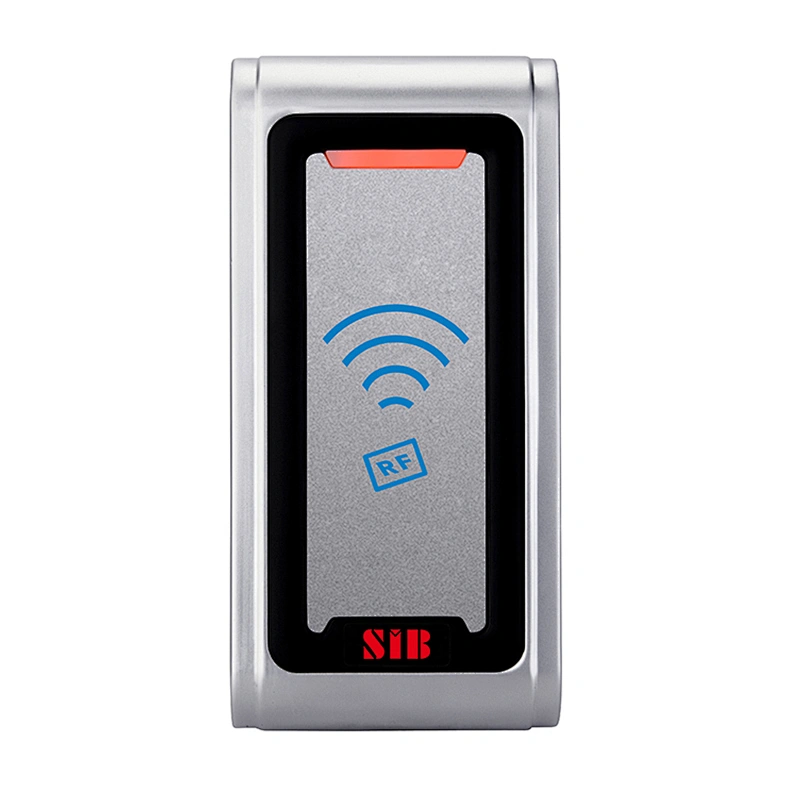

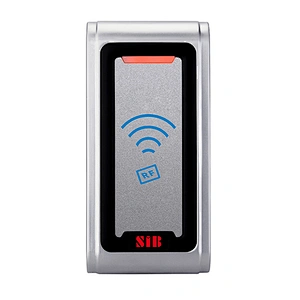

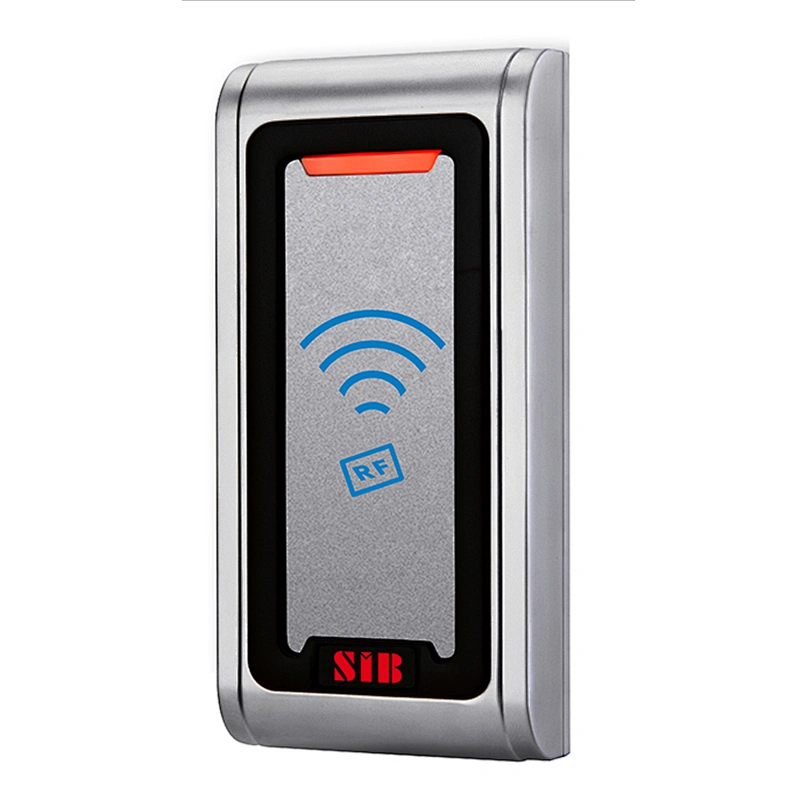

Metal RFID Wiegand Card Reader

1. Features

• Metal shell, anti-vandal
• Very low power consumption,standby current less than 30mA
• WG 26/34 output
• Fast Search speed : time between reading card and opening the door is less than 0.1S

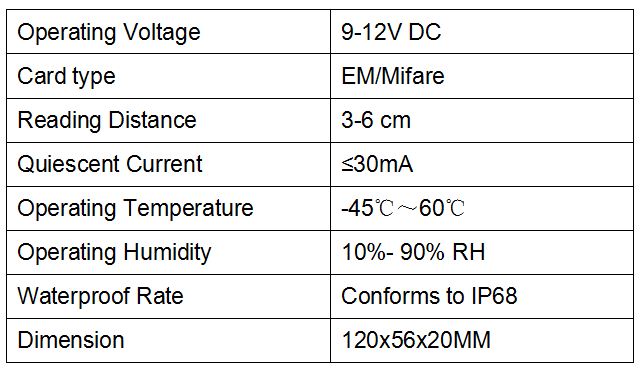

2. Specification

3.Wiring

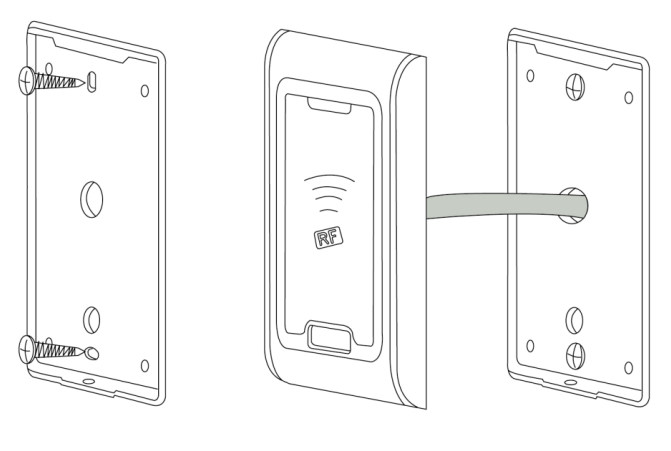

4. Installation

Drill the holes on the wall according to the hole size of the back cover or install the cable box on the wall,fix the back cover firmly on the wall with the supplied screws.

Thread the cable through the cable hole, connect the wire needed, wrap unused wire with insulating tape in case of short circuit

Fix the front cover to the back cover with screw driver

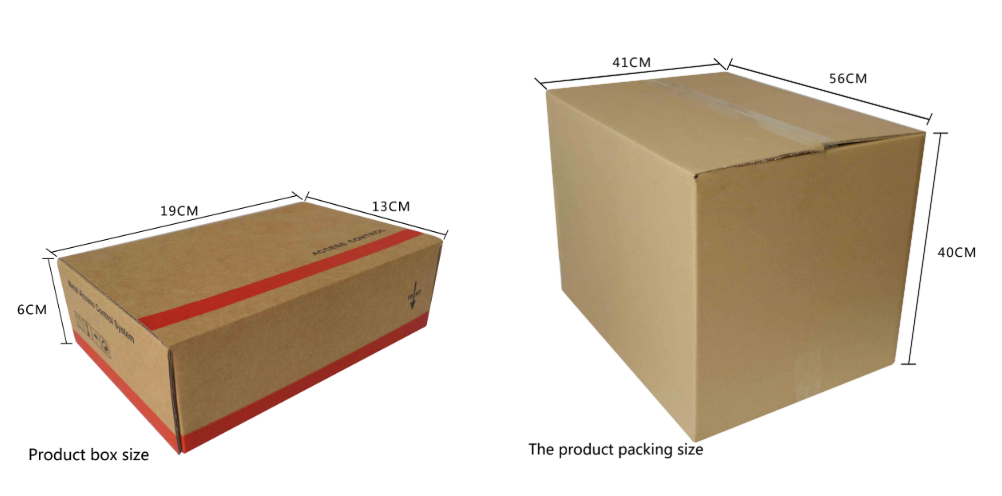

5. Packaging

0.43kg/pc

54pcs/ctn, 24kgs/ctn

Outside carton dimension: 56*41*40cm

​​​​​​
