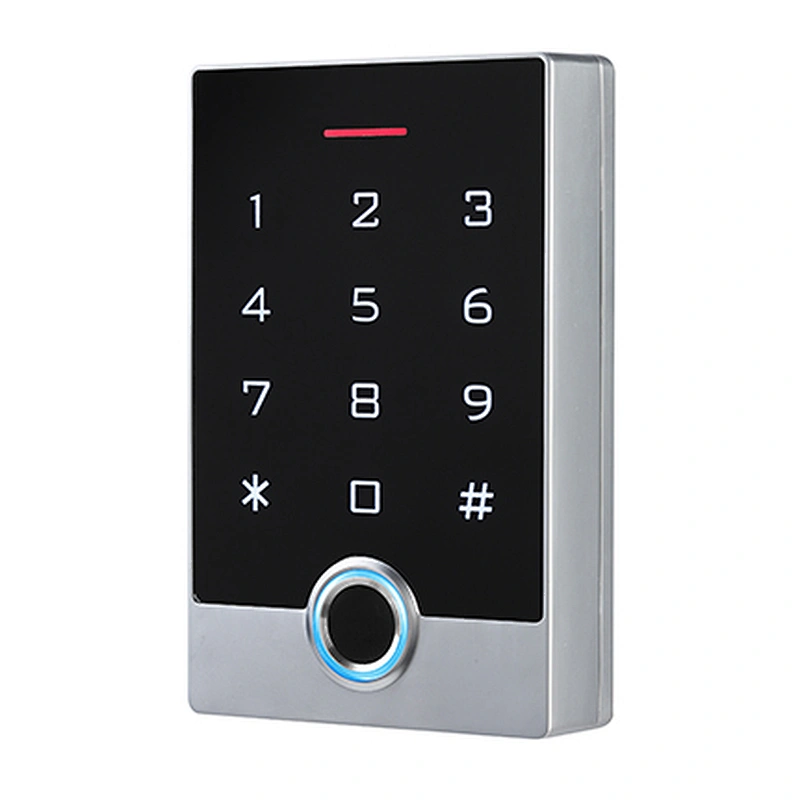

1. Features
- Read 125KHz EM Card and HID Card (Optional)
- Read 13.56MHz Mifare card and CPU card (Optional)
- Metal backlight keypad
- Contain reader mode, the transmission format could be adjusted by user.
- Support seven access ways
- Support admin add card and admin delete card
- 10,000 card/pin users and 600 fingerprint users.
2. Technical Specifications
- Operating Voltage: DC 12-24V
- Standby Current: ≤35mA
- Operating Current: ≤100mA
- Operating Temperature: -40℃~60℃
- Operating Humidity: 0%~95%
- Access ways: Fingerprint, card, code, or multiple combination methods
3. Wiring
Colour | Function | Description |
Green | D0 | WG output D0 |
White | D1 | WG output D1 |
Grey | ALARM | Alarm signal MOS tube drain output end(optional) |
Yellow | OPEN | Exit button one end(the other end connected GND) |
Brown | D-IN/LED | Door contact switch input(LED input as reader mode)(optional) |
Red | 12V+ | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on end(Connect positive electric lock "-") |
Purple | COM | Relay Public end, connect GND |
4. Diagram

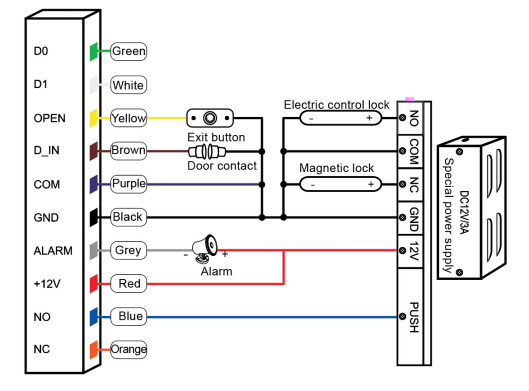

Common Power Supply
Note: The door contact and alarm function are optional

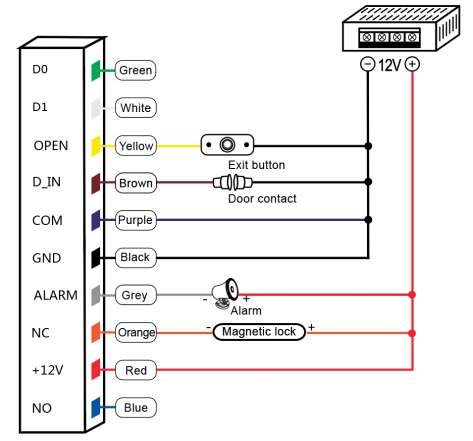

Special Power Supply
Note: The door contact and alarm function are optional

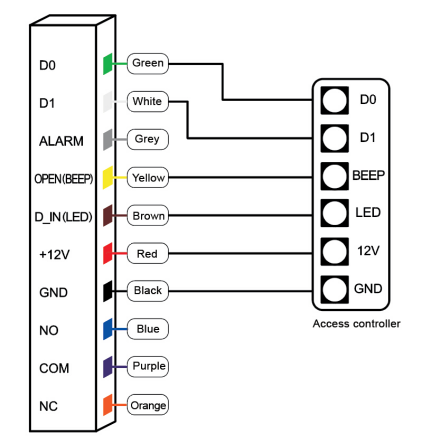

Reader Mode
5. Packaging
Model | Card Type | Waterproof Degree | Weight/PC | Q’ty/CTN | N.W/CTN | Outside Dimension |
TF3EM | EM | / | 0.6kgs | 54PCS | 34kgs | 56*41*40cm |
TF3MF | Mifare | / | 0.6kgs | 54PCS | 34kgs | 56*41*40cm |
| TF3EM-W | EM | IP68 | 0.7kgs | 54PCS | 39kgs | 56*41*40cm |
| TF3MF-W | Mifare | IP68 | 0.7kgs | 54PCS | 39kgs | 56*41*40cm |
