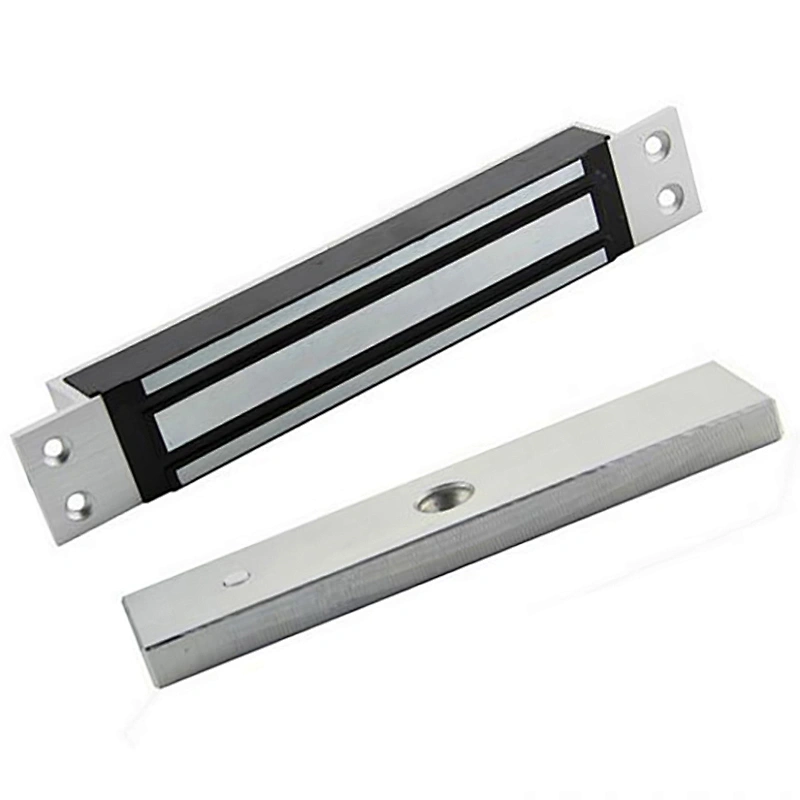

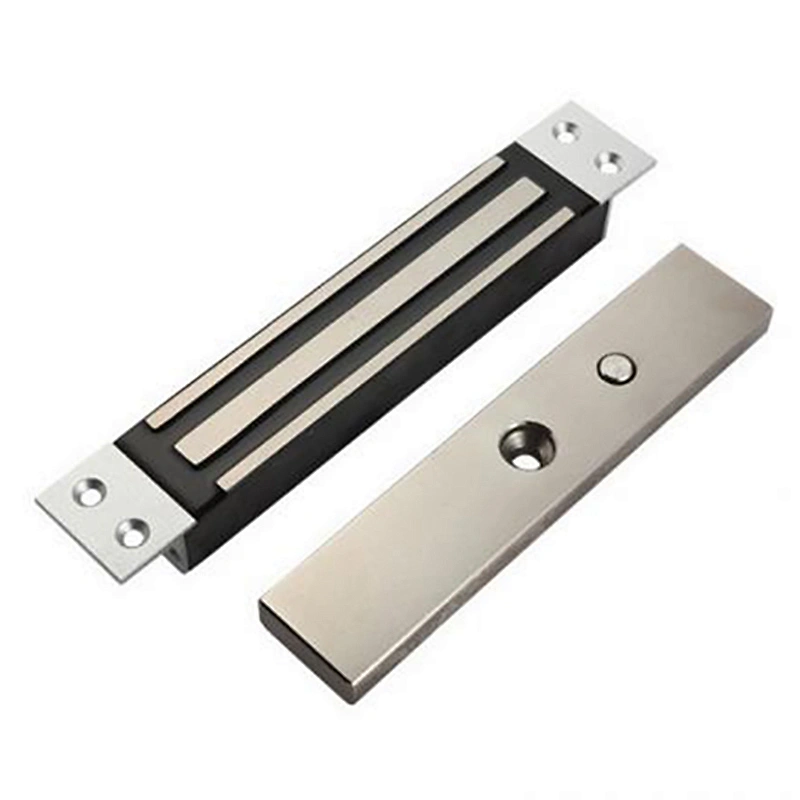

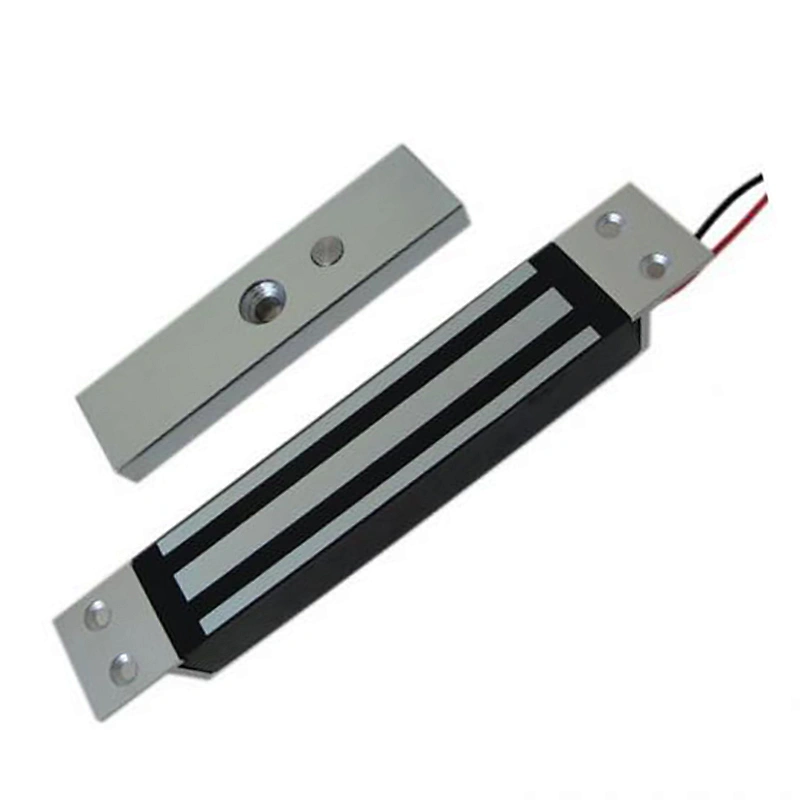

180Kg 12V Built-In Concealed Electric Magnetic Electromagnetic Lock for Door Gate Access
Lock size | 194LX34Wx23H(mm) |
Armature Plate | 132LX34Wx12H(mm) |
Working voltage | DC12V or DC24V |
Current Draw | 12V/480mA 24V/240mA |
Surface Temp | ≤20℃ |
Operating Temp | -10℃ ~ 55℃（14°F-131°F） |
Finishes for shell | Anodized Aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 1.5KG |
