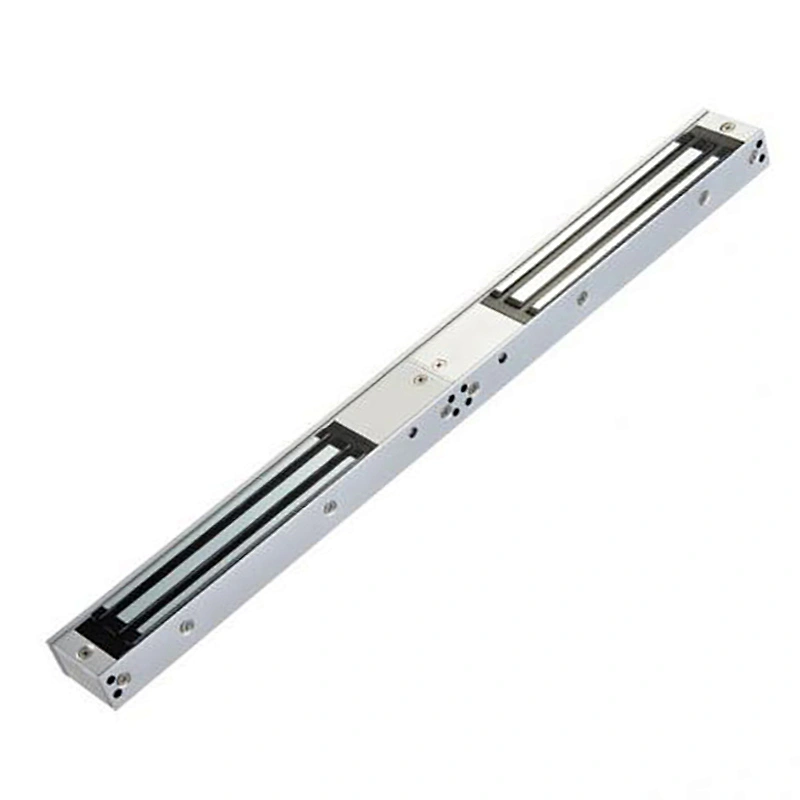

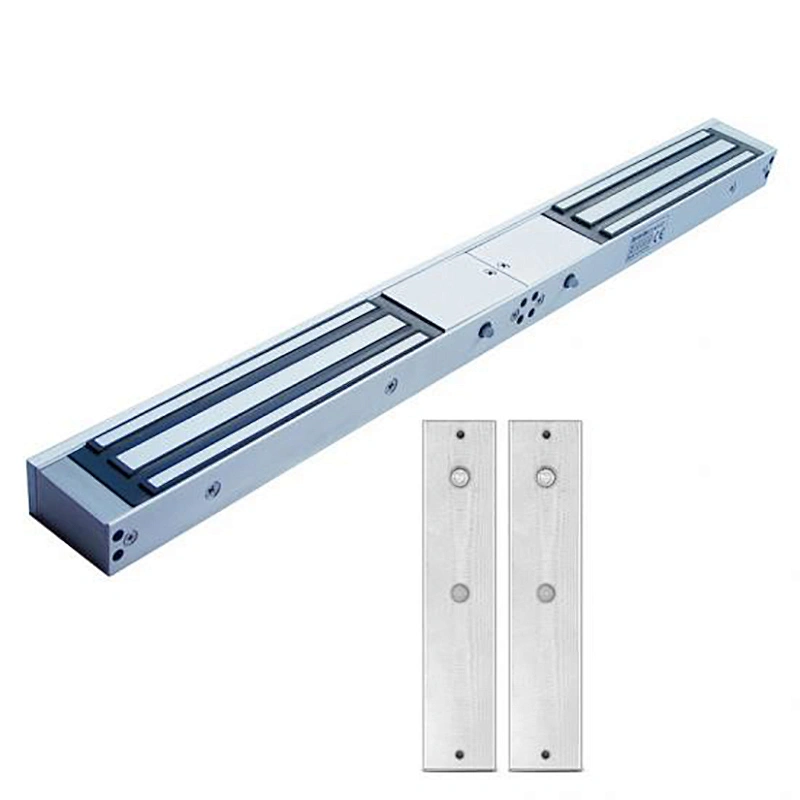

Double Door Magnetic Lock For Automatic Swing Doors 800LBS 350KGS
Lock Dimension | 570Lx55Wx27.5H(mm) |
Armature Plate Dimension | 190Lx45Wx11H(mm) |
Holding Force | 350kgx2(800Lbsx2) |
Input Voltage | 12/24VDC+10% |
Current Draw | 480mAx2 at 12VDC 240mAx2 at 24VDC |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Signal Output | Need to order EL-D350S |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55°C (14°F-131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Send Message
Related Products
Model NO. L280B
Model NO. L350B
Model NO. L60
Model NO. L04A
Model NO. L180
Model NO. L180M

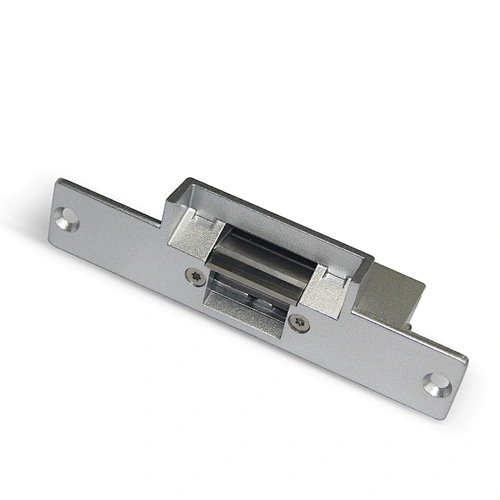

Model NO. L02B
