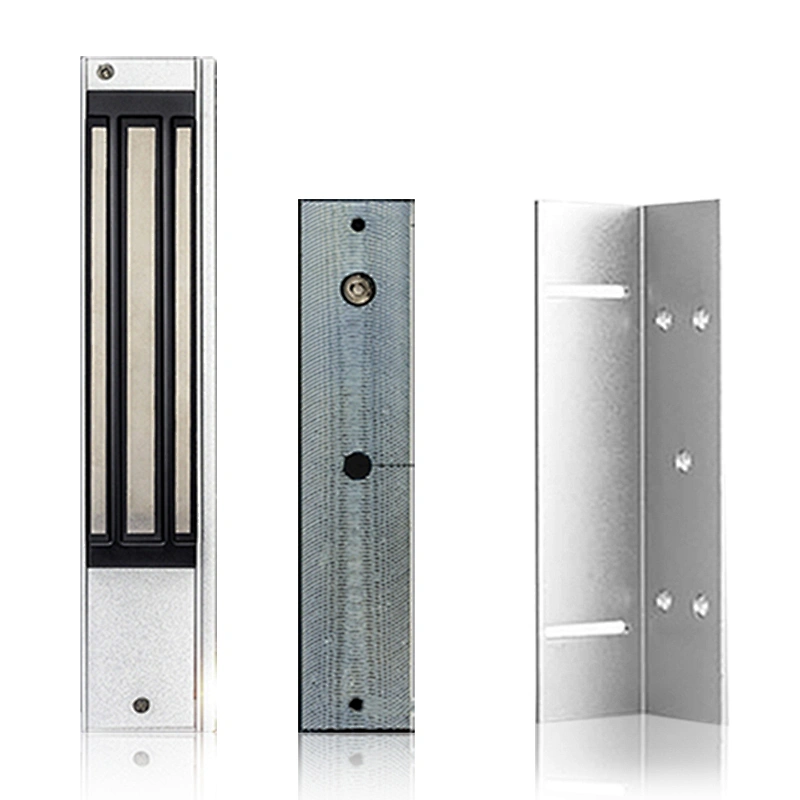

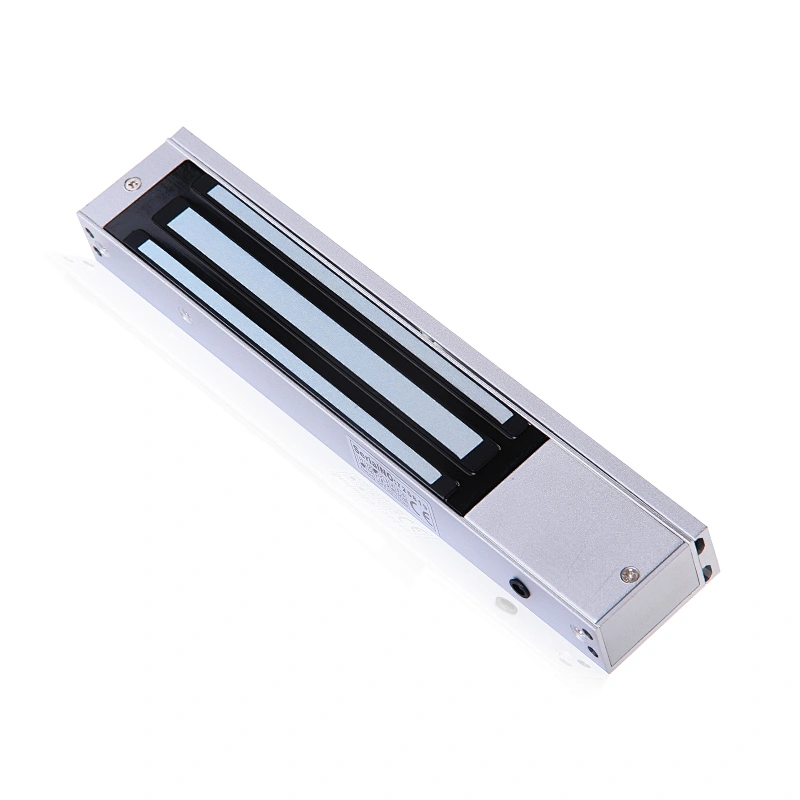

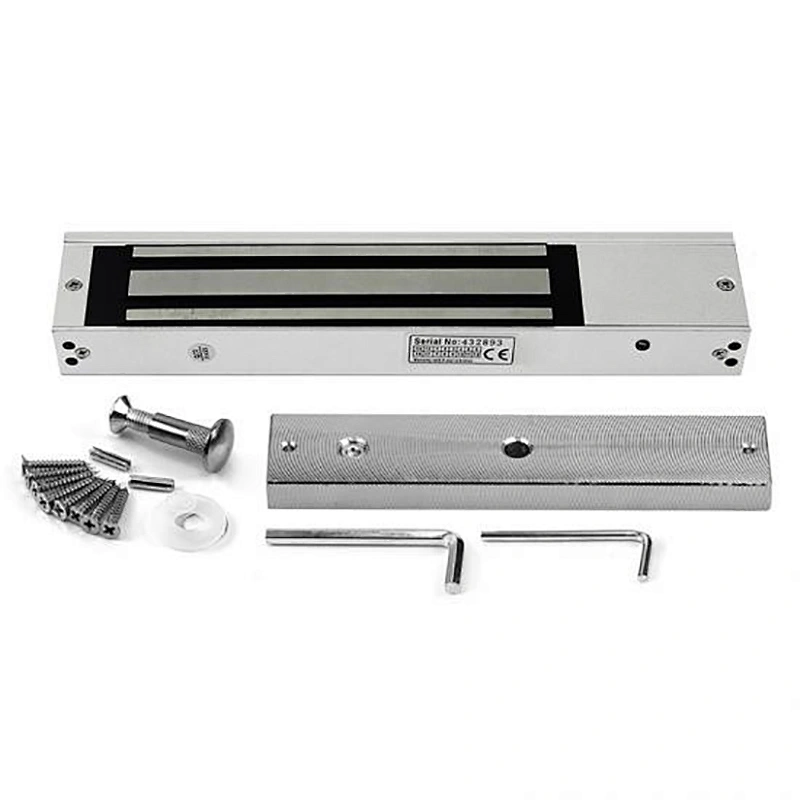

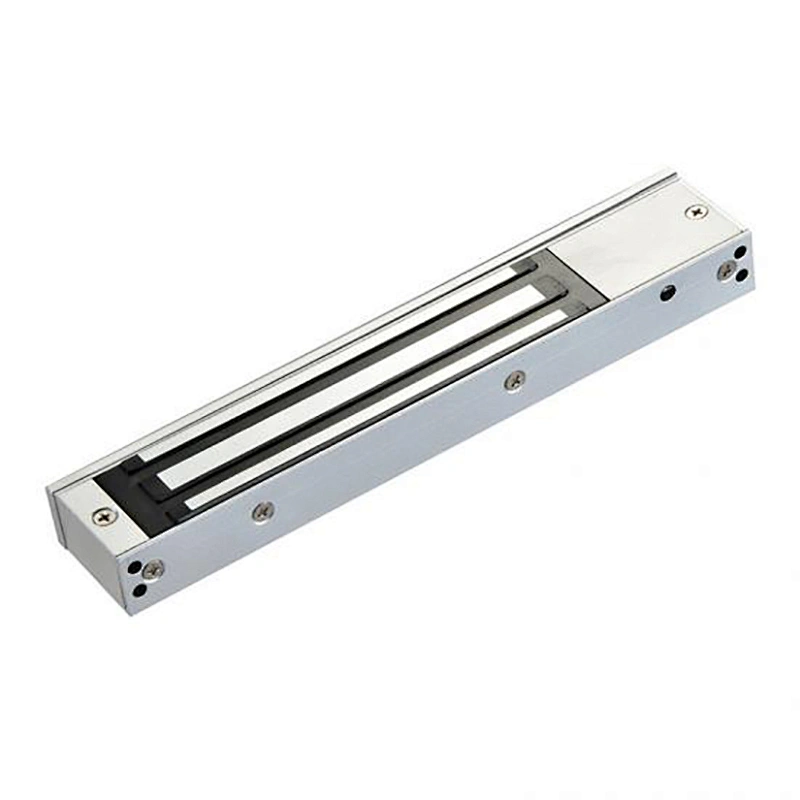

280KGS Electronic Door Lock Electric Magnetic Lock Gate Opener Electromagnetic for Access Control
L280B | With LED (Red only) |
Lock size | 250Lx48.5Wx25H(mm) |
Plate | 180Lx38Wx11H(mm) |
Holding Force | 280kg (600Lbs) |
Voltage | DC12V or DC24V (adjustable) |
Current Draw | 12V/500mA 24V/250mA |
Signal Output | Dry Contact, Max Rating of Contact Current 3A |
Surface Temp | ≤20°C |
Operating Temp | -10°C ~ 55°C (14°F~131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum surface texture processing |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 2kg |
Standard Packing | 12pcs |
