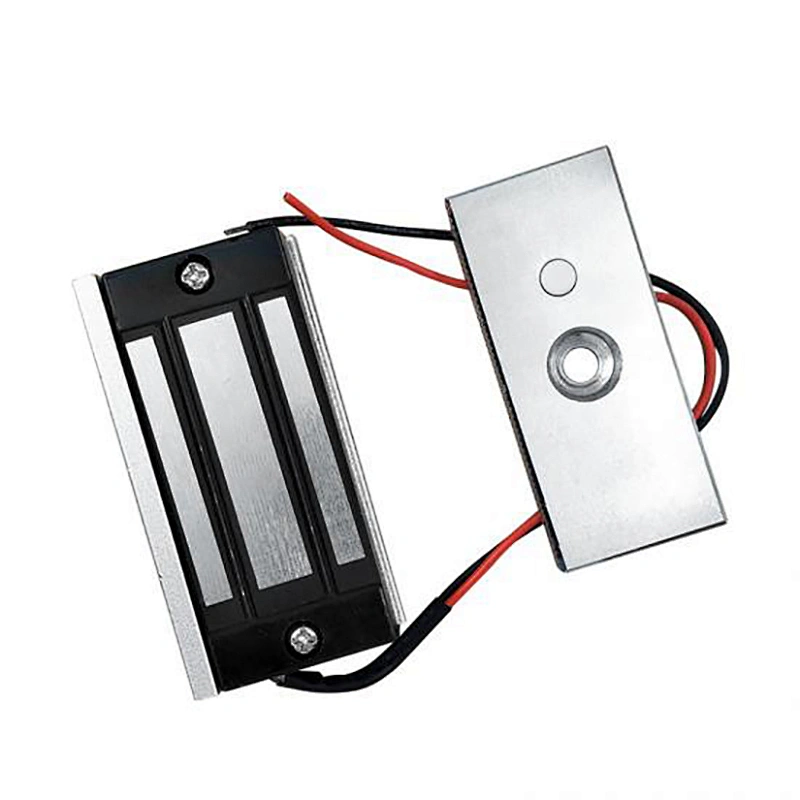

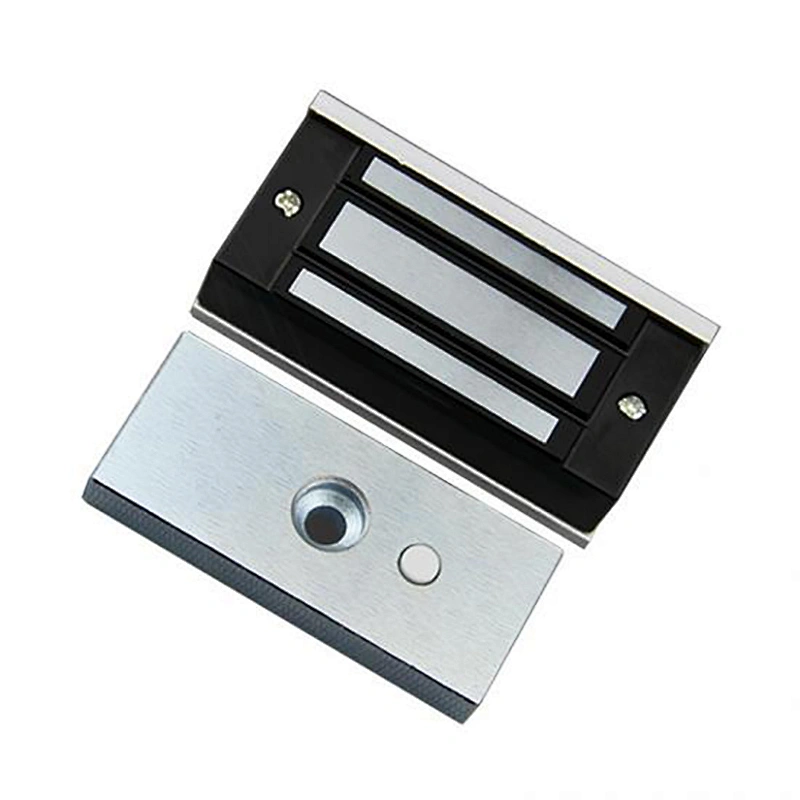

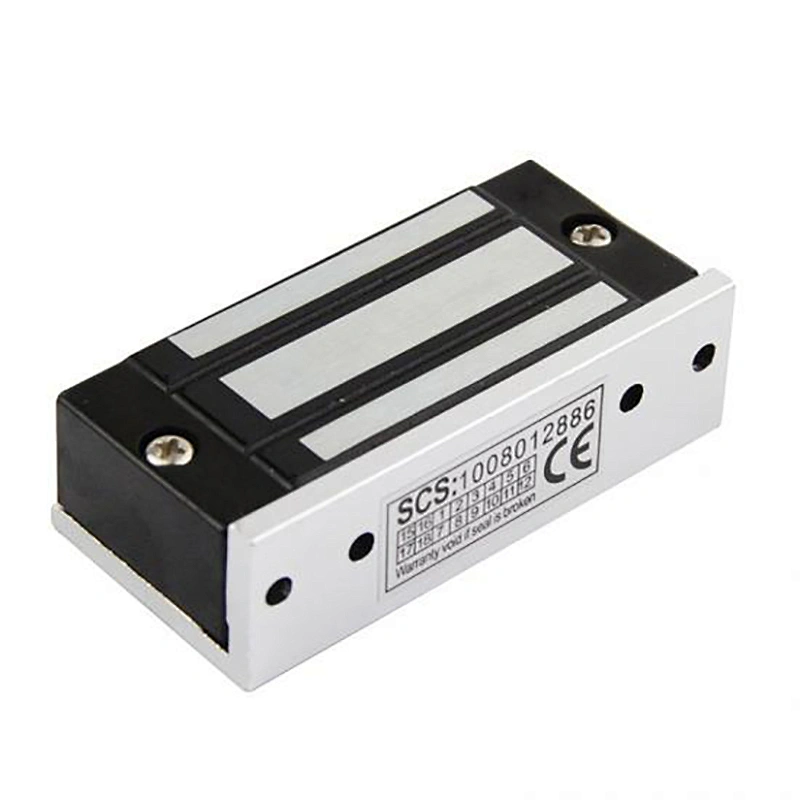

Electronic Magnetic Lock Electric Control Door Lock For access control accessories
Item | Parameter |
Lock size | 79Lx40Wx23H(mm) |
Armature plate | 75Lx31Wx10H(mm) |
Holding force | 60kg(100Lbs) |
Voltage | DC 12V |
Current draw | 12V/160mA |
Suitable for | File Cabinet, Display Cabinet |
Operating temp | ≤20°C |
Surface temp | -10℃ ~ 55℃ (14°F~131°F) |
Suitable humidity | 0~90% (non-condensing) |
Finishes for shell | Anodized aluminum surface texture processing |
Finishes for magnetic | Zinc |
Finishes for armature | Zinc |
Weight | 0.6kg |
Standard packing | 60pcs |
