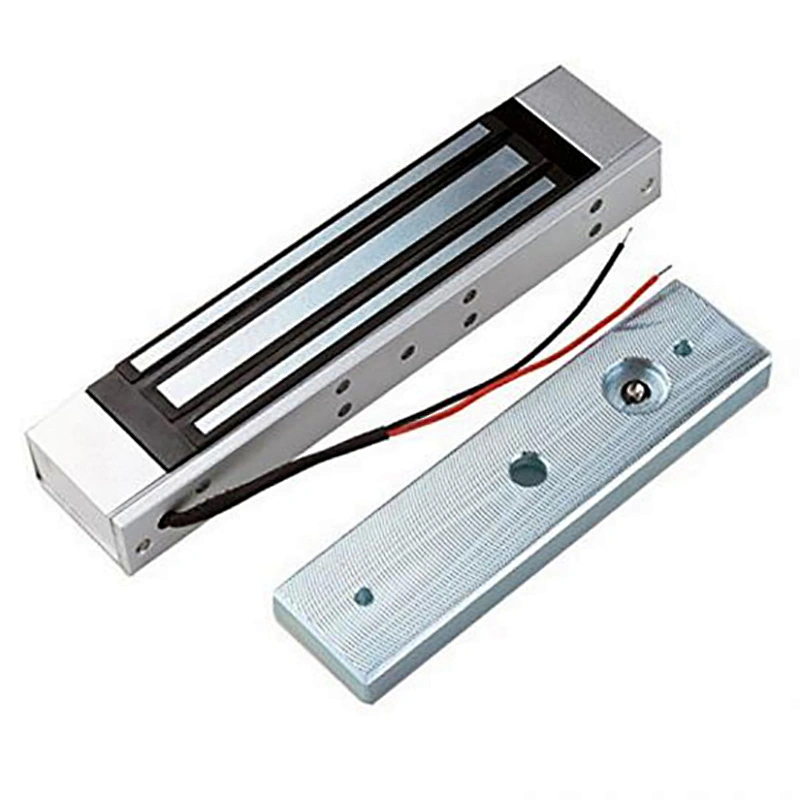

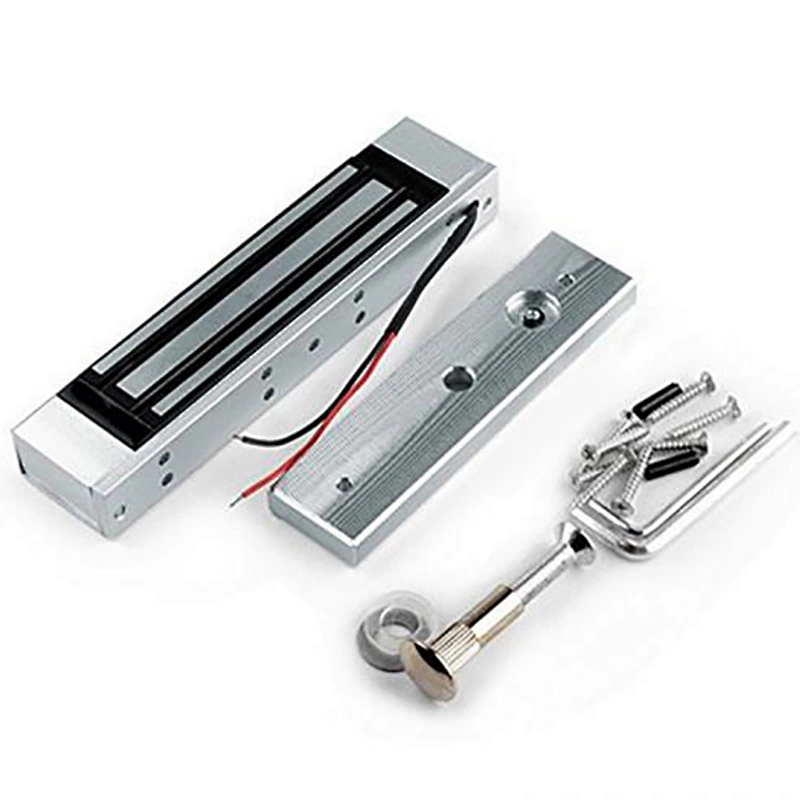

180KG/350lbs Electric Magnetic Lock DC12V Electromagnetic Locks for Electronic Door Access Control System
Lock Size | 170Lx41.5Wx20.5H(mm) |
Armature plate | 130Lx33Wx9.3H(mm) |
Holding Force | 180KG(350Lbs) |
Voltage | DC12V or DC24V (24V need to customize) |
Current Draw | 12V/280mA 24V/150mA |
Signal Output | Pls see EL-350TS |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55℃ (14°F~131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum surface texture processing |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 1.2kg |
Standard Packing | 20pcs |
